Prepared To Stay On Track
From cleaning huge cast parts like bogies, to peening leaf springs, through to removing paint from entire carriages, Wheelabrator has the capacity to serve the Rail industry.

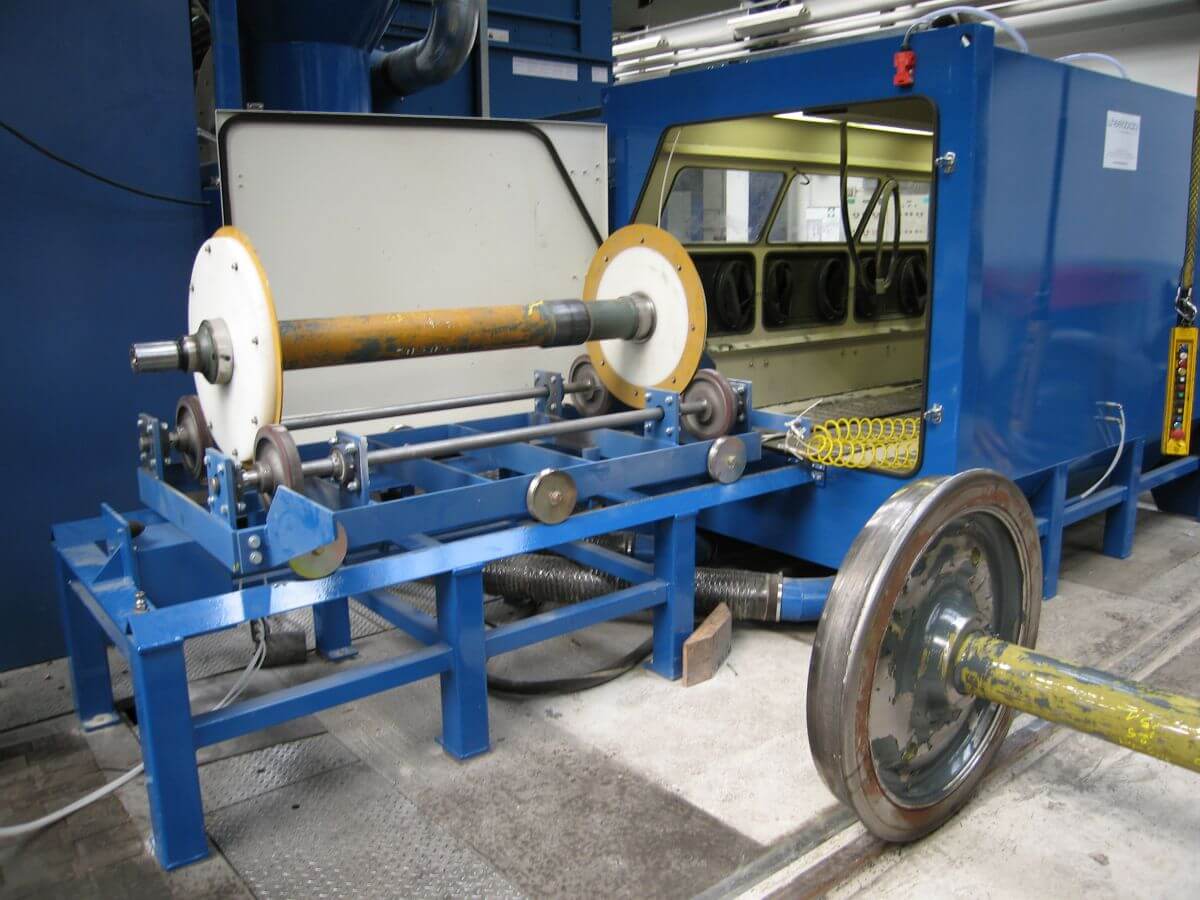

Railway axle cleaning
Wheelabrator offers technology designed to clean railway wheelset axles before crack initiation testing and the end control of dimensions.
- Non-destructive by ultrasonic test
- Non-destructive by magnetography
The surface is completely cleaned with all paint and oxide traces removed by means of a shot blasting machine. CNC (automated) equipment is preferred to manual technology to remove the margin for error.
The shot blast machine (Es 11 x 22 H Ro S 2 m featured here) can clean 30 standard axles in an 8 hour shift, to a quality level of SA 2, SA 2.5 or SA 3 depending on the initial status of the railway axle. Recommended media: Steel grit LG 80 – 55 to 60 HRC.
Roughness results: 0.6 to 4 μm with the above mentioned media and adjustable working pressure, these results being dependent on the wheelset’s initial status and paint or rust thickness prior to the blasting process.
Shot peening applications
Railway components such as coil springs and wheels undergo rigorous work stresses.
Wheelabrator's automated shot peening systems peen such components in high-production in-line machines. These machines are designed to withstand duty conditions prevalent in production environments such as railway workshops and foundries.
Coil spring peening
In-line coil spring shot peening machines convey coil springs on parallel rotating rollers with pusher fingers that transport them through the blast zone. Multiple blast wheels target the springs, providing different blast angles that peen the coil springs as they spin through the blast cabinet.
Railway wheel peening
Railway wheels are shot peened in an in-line machine with two blast wheels targeting the wheel simultaneously from both sides. Wheels roll in and out of the blast cabinet assisted by automated work handling arrangements. A roller arrangement spins individual wheels in the blast stream.
Both shot peening systems are built with elaborate process controls that monitor and control variables such as blast velocity, blast media size and media flow rate. Shot peening machines are designed with sophisticated yet simple to use controls that provide real-time information of the process and effective means of trouble-shooting.
For smaller quantities of wheels, airblast machines can also be used.
Paint removal and surface cleaning
Airblast rooms can be made to any size to perform a variety of different functions. The blast nozzles are operated manually, with the operators standing on moving platforms (various options are available).
On-site Paint Removal

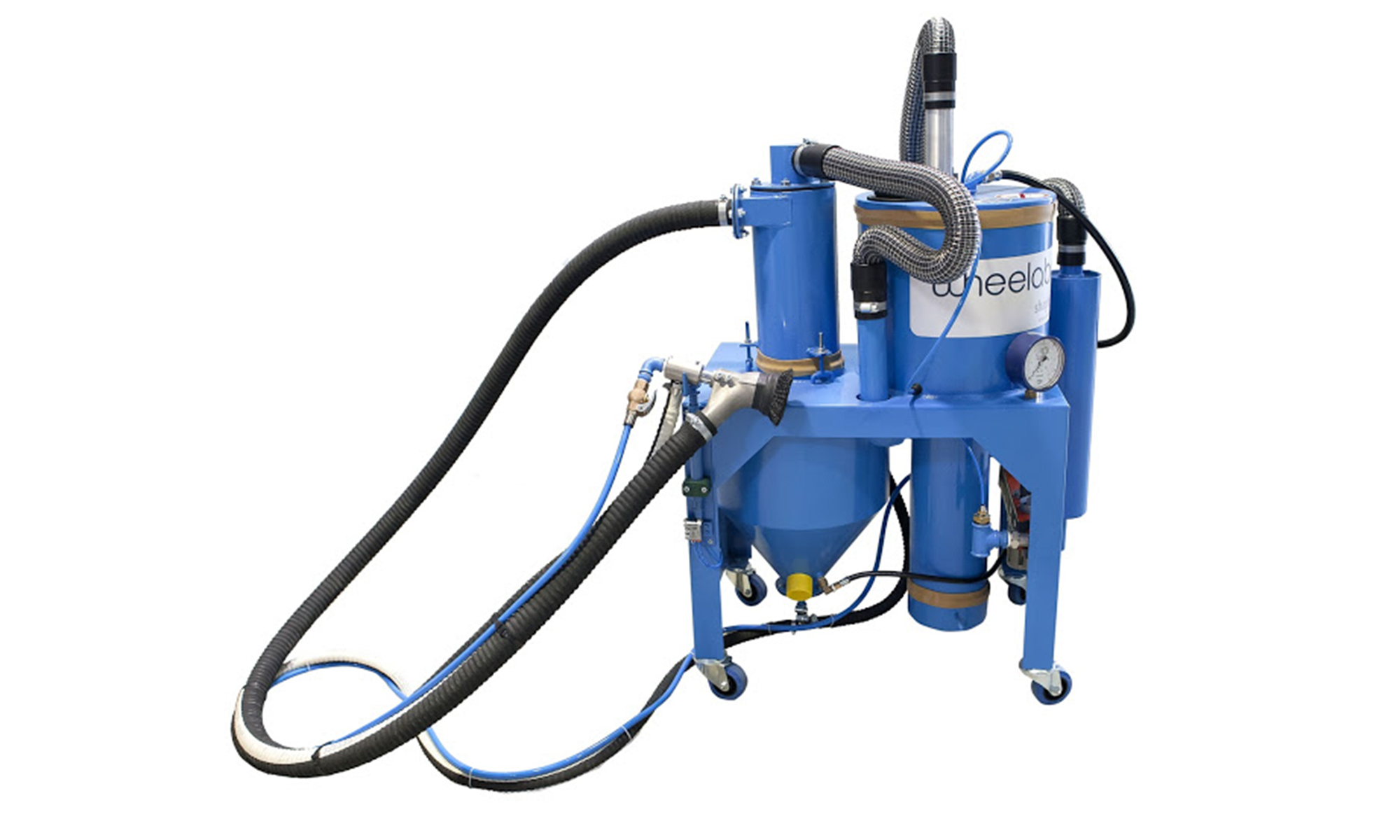

For repair work, open blast or closed circuit machines can be used.

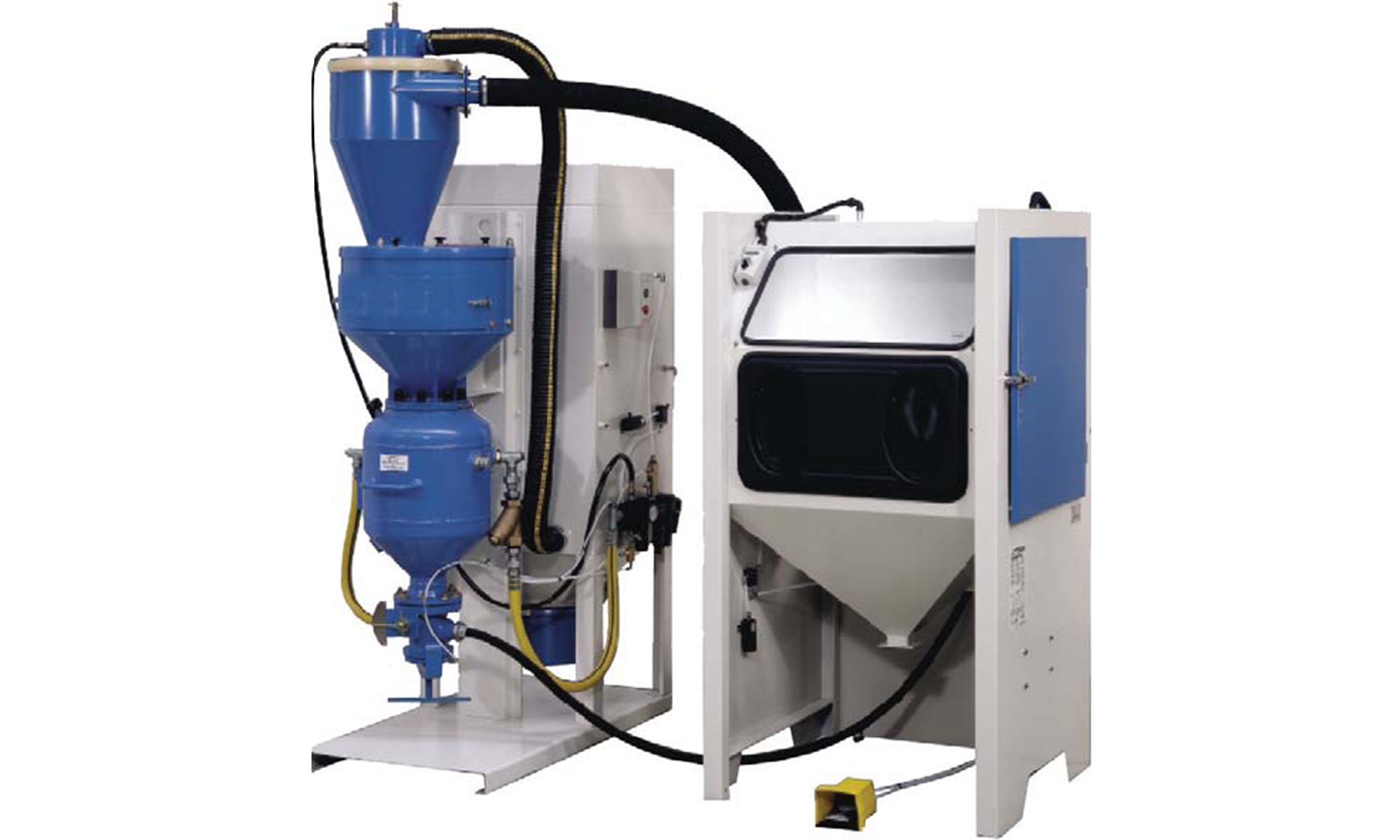

Vacu-Blast Ventus Airblast Cabinet
Technology:Airblast
Application:Cosmetic Finishing
A favorite in the Aerospace and medical industries, where keeping abrasive quality is very important, the Ventus range is versatile enough to allow all types of personalization. Available as pressure fed or suction fed cabinets.
