MP 1500 System
MP 1500 Jet Engine Component Peening Machine
Technology: Airblast
Application: Shot Peening
Key Benefits
- State-of-the-art aerospace shot peening
- Excellent precision and process control
- Excellent reliability
- Pitless pneumatic recovery
Features
- Maximum component size: 1500 mm diameter x 1000 mm height, weight: 500kg maximum diameter of 2000 mm with the MP 1500 TI XL version
- Precision pressure pots with closed loop regulation for pressure and media flow
- Dedicated classification device depending on chosen media

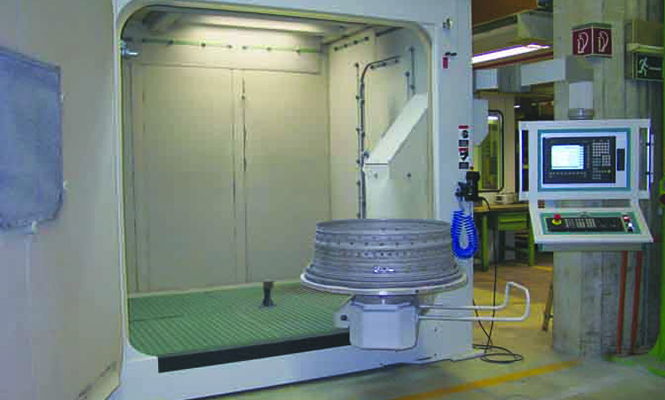

- Numerical table mounted on a revolving arm for easy loading and unloading
- 4-axis robot: horizontal and vertical strokes up to 1500 mm, palm and wrist movements +/- 135°
- CNC control system: Fanuc 16i or Siemens 840 D
- Supervision software package, including peening process control and maintenance tools
- System and process control compliant with DMP28, MIL S 1365 and AMS 2432
Applications
- Landing gear
- Aircraft wheels
- Jet engine discs
- Turbine discs
- Compressor rotor discs
- Spools
- Blades
Structural components in:
- Steel
- Inconel
- Aluminium
- Titanium alloys
The Ultimate Solution for
Aero-Engine Shot Peening and Blasting Processes
Developed in co-operation with aeronautic OEMs, it fulfils the most demanding specifications in terms of precision and process control.
Representing the state-of-the-art in aerospace shot peening, the MP 1500 range can process the widest variety of aero-engine components to improve or restore their resistance to fatigue.
These include turbine discs, fan discs, compressor rotor discs, spools and blades as well as structural components made from steel, Inconel, aluminium or titanium alloys.
Optional Features
- Vertical hydraulic sliding door
- Second nozzle manipulator (3/4 axis)
- Numerical table equipped with 12 or 20 numerical satellites
- Horizontal spindle with adjustable counter head
- Sound insulation / 75 dBA
- Rotary lance unit for bore and slot peening
- Lateral rotary lance for long bores (stroke up to 2 m)
- Abrasive flow calibration unit CF 36 type

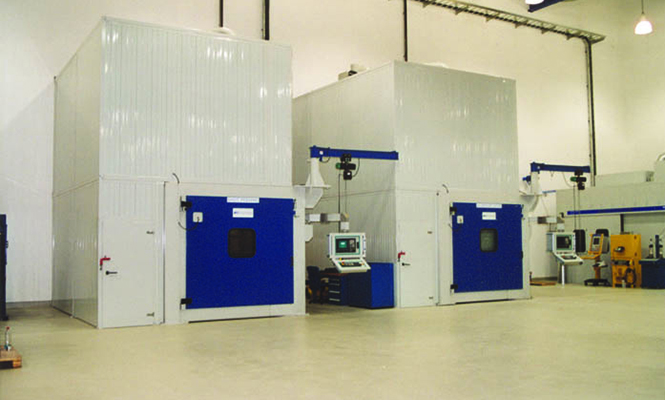

- Integrated 500 kg electrical hoist for component loading
