Engine Part Shot Peening

Wheelabrator has great experience and understanding of the precision and repeatability required by the major aerospace companies, and its technologies provide a critical step in the manufacturing processes of the OEMs and their second and third tier suppliers.

Engine Part Shot Peening

Engine Component Shot Peening

Aircraft engine components operating in high stress environments such as fan and compressor disks, blades, rotors and shafts are shot peened to increase their resistance to fatigue failure. The compressive residual stress introduced by peening will reduce and often negate any residual tensile stress occurring during the manufacturing process.

Wheelabrator automated airblast shot peening systems have been designed specifically for the aerospace industry’s exacting specifications. Using precision, multiple-axis nozzle manipulation in conjunction with part movement, the systems allow for flexibility and repeatability for the preparation of a wide variety of engine components.

All systems comply with international specifications and audits, such as AMS, Nadcap, MIL and various OEM specific requirements.

The machine types specified below are just examples of solutions that we could propose. However the majority of machines delivered to the aerospace sector are custom-designed to suit the precise application of the individual customer. Please use the information as a guide and proof of our capability/experience, but please contact us to find the best solution for you.

Wheelabrator specialises in custom-designed shot peening and surface preparation solutions to provide a solution to your challenges. With global innovation (five technology centres across the world) and global machine support, we can support your shot peening and surface preparation needs.

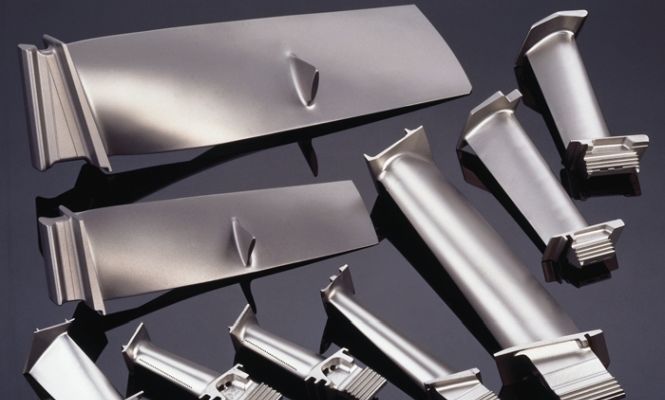

Fan Blade, Blade and Vane Peening

Fan Blade, Blade and Vane Peening

Satellite (index) table peening machines - such as the MPR2TR7 - can be used to shot peen components in one chamber, at the same time as loading and unloading further parts in other chambers.

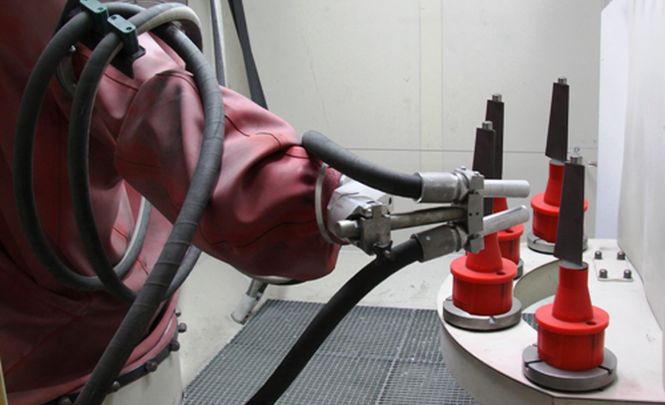

A multi axis robot is employed for external shot peening, and a lance is used for internal area (bore) peening. Automated systems will give you the benefits of efficient handling of multiple components.

IGV Blade Peening

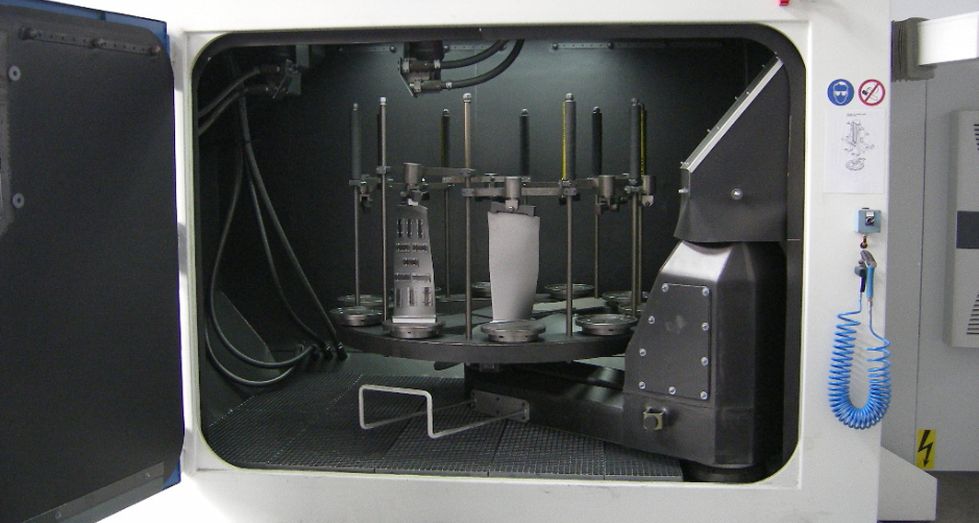

Table machines provide a flexible solution to shot peen a wide range of IGV blades using manual loading. Nozzles and lances are employed for internal and external component shot peening.

Masking and component holders can be supplied to precisely fit the parts to be treated.

See the MP machine range for further details

IGV Blade Peening
Engine Blades, Foils and Root Sections

Engine Blades, Foils and Root Sections

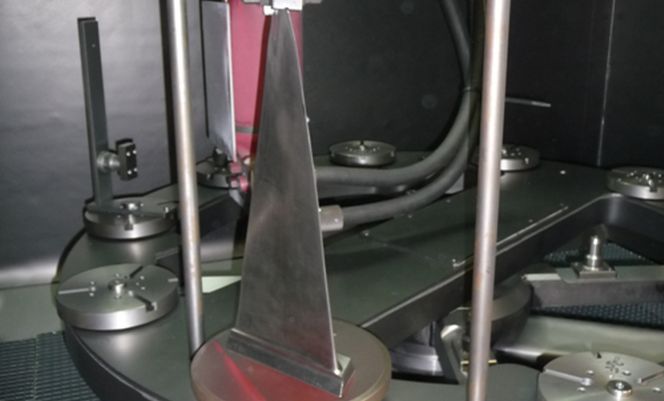

Aerospace engine blades, airfoils and root sections can also be treated with a high level of productivity on the MP12S20 table machine.

Turbine (Fan and Compressor) Discs, Shafts and Cylindrical Sections

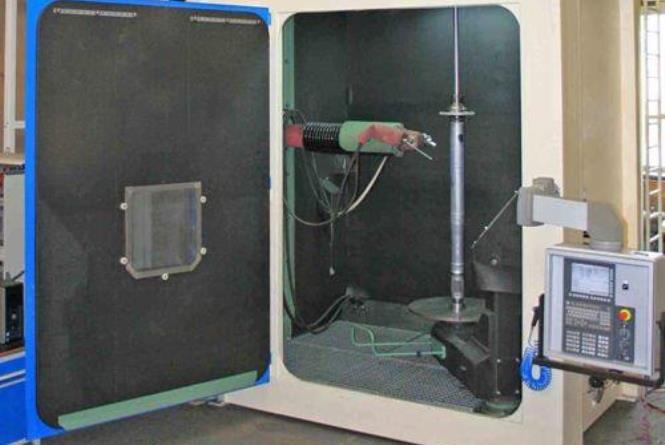

Discs and shafts can be treated either vertically on an adapted table machine (such as the MP1500 LS), or horizontally on rollers, simultaneously shot peening internal and external dimensions with high precision and repeatability.

Turbine
Engine Discs and Blisks

Engine Discs and Blisks

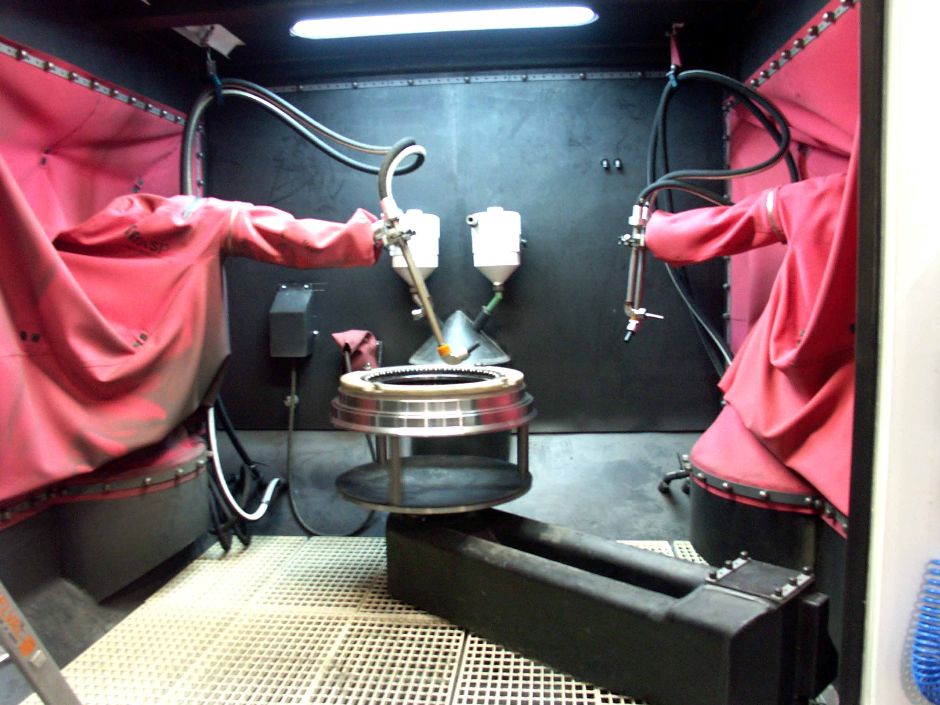

An adapted table type airblast machine achieves high precision shot peening utilising three (3) synchronised groups of axes.

The programming of the polyarticulated robot trajectories is achieved off-line using 3D and robot CAD drawings.

See the MP1200 and MP1500 products for details.

MP 600 Cell

MP 600 Cell

Technology:Airblast

Application:Cleaning

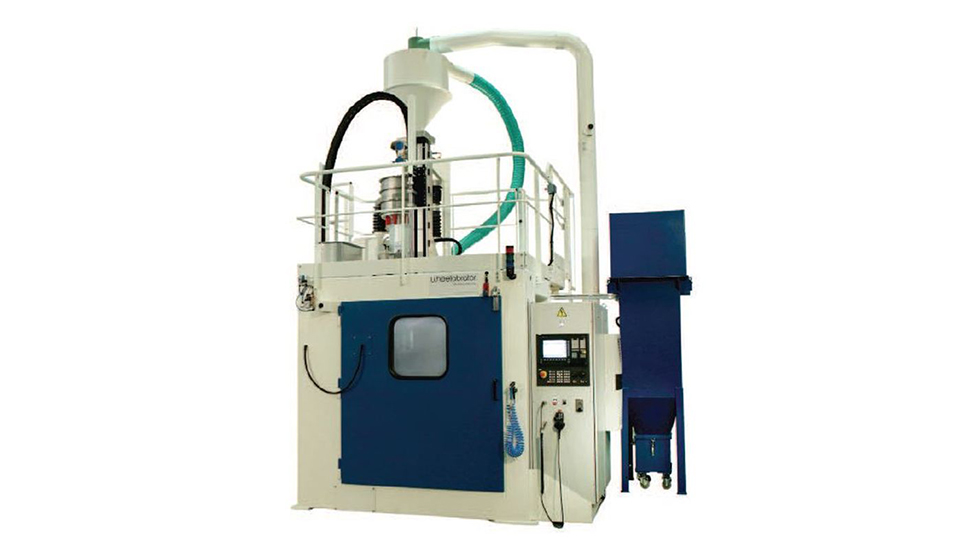

The state-of-the-art in aerospace shot peening, the MP 600 range processes small aero-engine components to improve or restore their resistance to fatigue; including turbine discs, fan discs, compressor rotor discs, spools, shafts and blades made from steel, Inconel, aluminium or titanium alloys.

MP 1000 Cell

MP 1000 Cell

Technology:Airblast

Application:Cleaning

MP 1000 is Wheelabrator's solution for aero-engine peening and blasting processed. Representing the state-of-the-art in aerospace shot peening, the MP 1000 range can process the widest variety of aero-engine components to improve or restore their resistance to fatigue.

MP 1200 System

MP 1200 System

Technology:Airblast

Application:Shot Peening

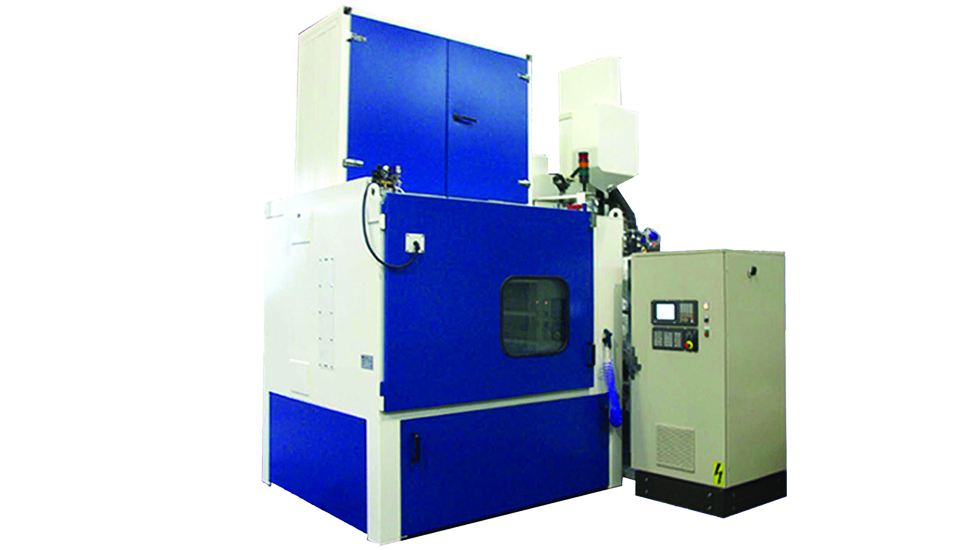

The MP 1200 multi-purpose CNC peening machine is ideal for the shot peening and surface treatment of automotive gears, crown wheels and shafts, and aerospace discs and blades.

MP 1500 System

MP 1500 System

Technology:Airblast

Application:Shot Peening

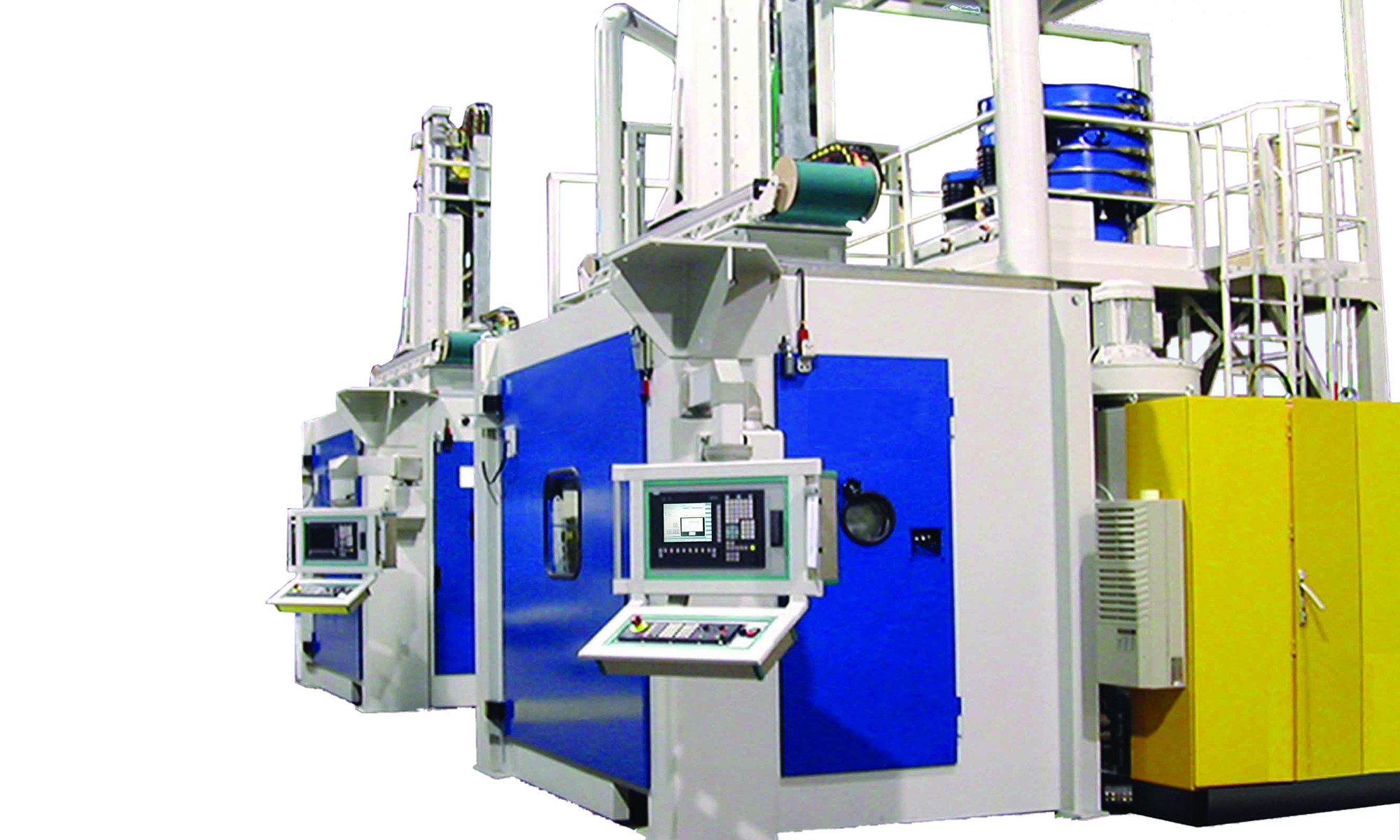

The MP 1500 range can process the widest variety of aero-engine components to improve or restore their resistance to fatigue. For aero jet engine components to 1500mm ⌀ and 1000mm H (or 2000mm ø in TI XL version).

MPR 1500 Robotic System

MPR 1500 Robotic System

Technology:Airblast

Application:Shot Peening

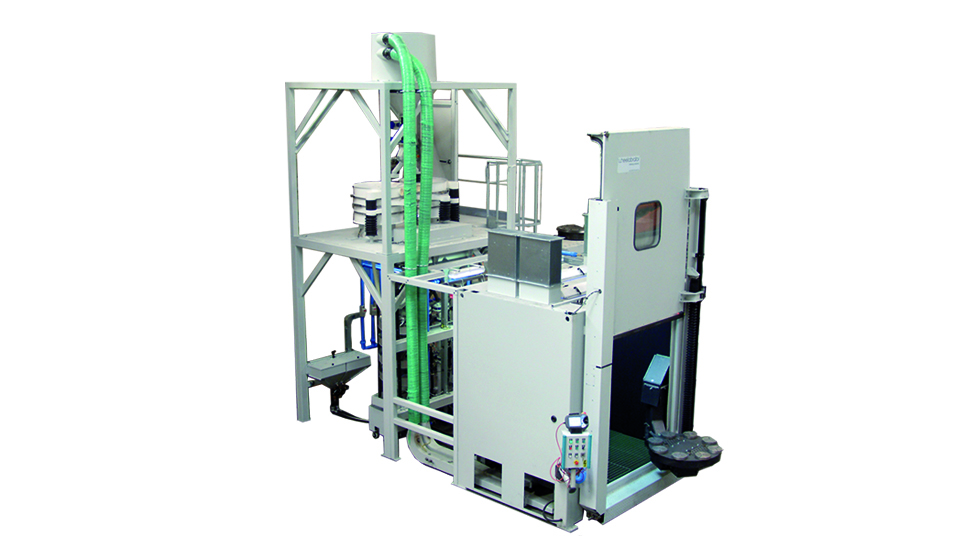

MPR 1500 machine is specifically designed for the aeronautic and gas turbine industries with 1 robot and 4-8 Satellite Tables.

MPR 2200 Robotic System

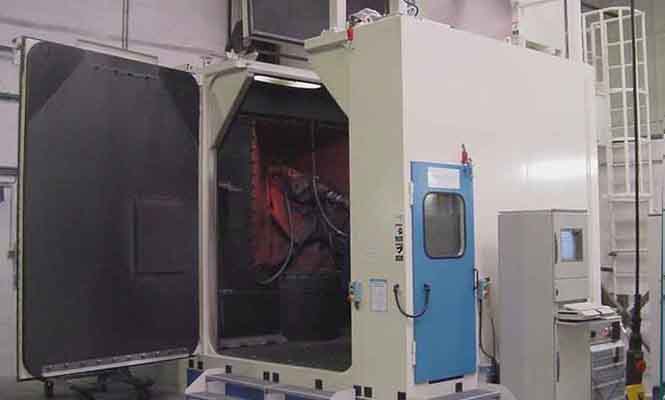

MPR 2200 Robotic System

Technology: Airblast
Application: Shot Peening

Robot Satellite Table Machine with complete process reliability, for aeronautic and gas turbine applications.

MP 2TR4 Cell

MP 2TR4 Cell

Technology:Airblast

Application:Shot Peening

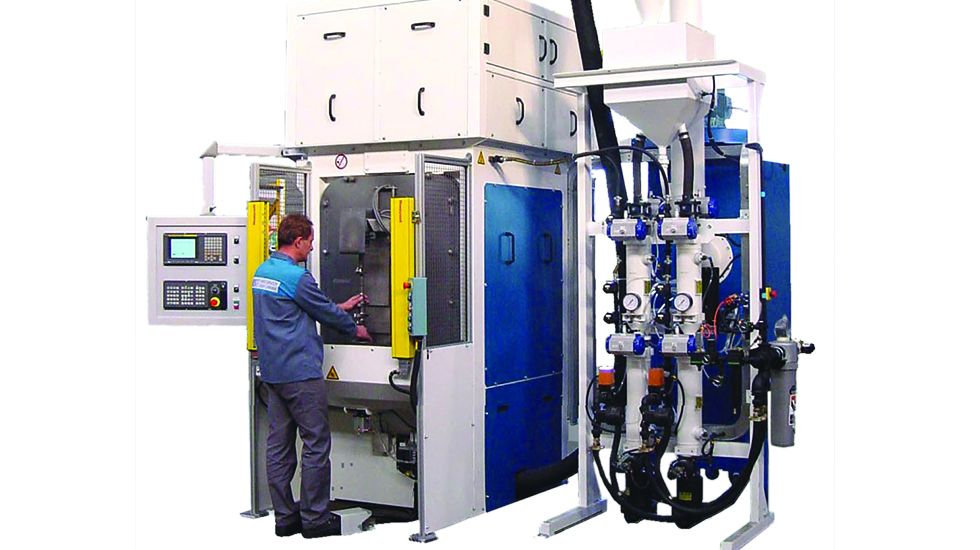

Automatic and Compact Two-table Peening System. The CNC MP 2TR4 machine has been designed for peening and blasting complex rotary components associated with the aerospace and automotive industries.

MP 2TR7 Peening Cell

MP 2TR7 Peening Cell

Technology:Airblast

Application:Shot Peening

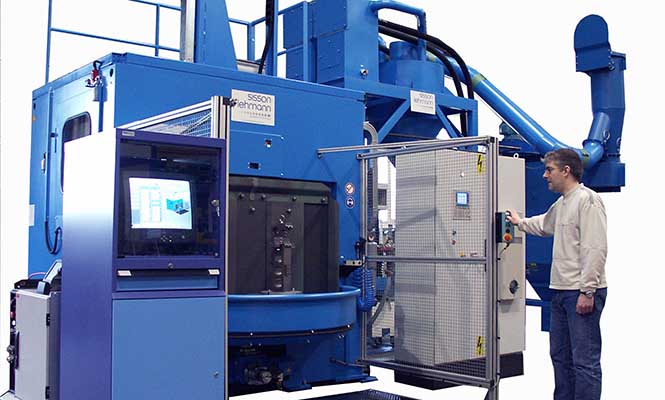

Compact two-table automatic peening machine for peening and blasting complex rotary components associated with the aerospace industry.

MP2R 1500

MP2R 1500 Robotic Peening

Technology: Airblast

Application: Shot Peening

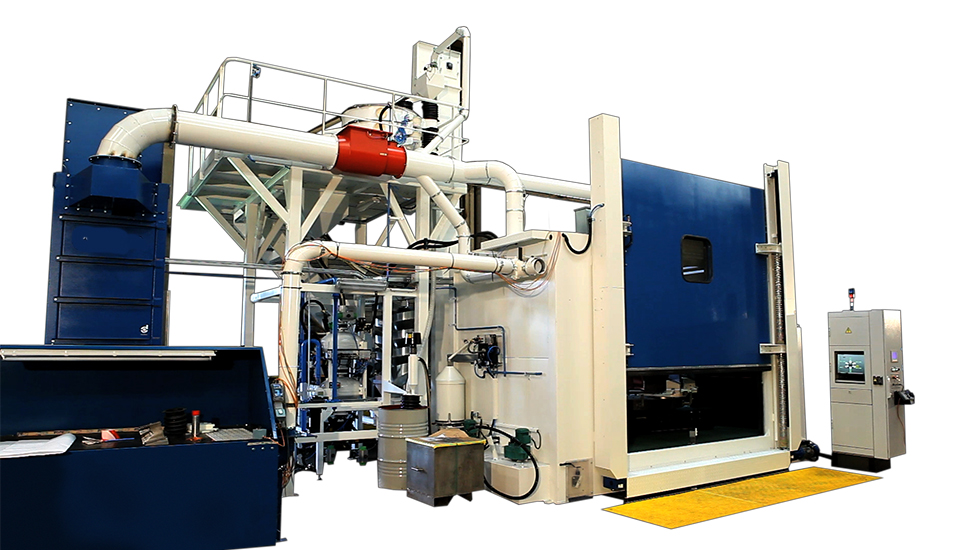

Two-Robot Satellite Table Machine with complete process reliability with 6-20 satellites, for aeronautic and gas turbine applications.
