Carousel (SPH)

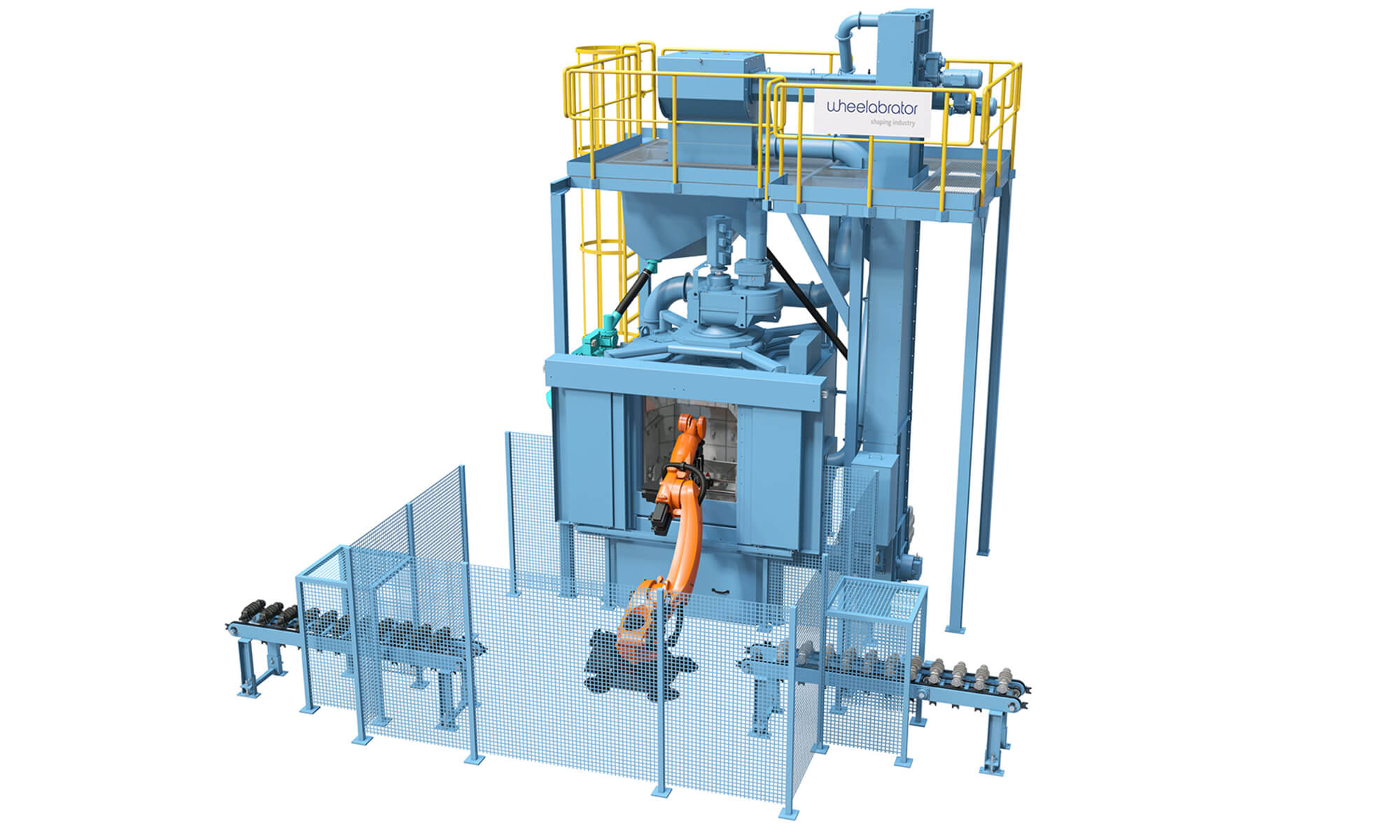

The Carousel Rotary Machine is a compact, high-performance blast cleaning system designed for the targeted treatment of components not suitable for tumbling. Featuring a revolving blast chamber with two or three compartments, the SPH allows for simultaneous blasting, loading, and unloading, optimising productivity while maintaining a small footprint and simple, pitless installation.

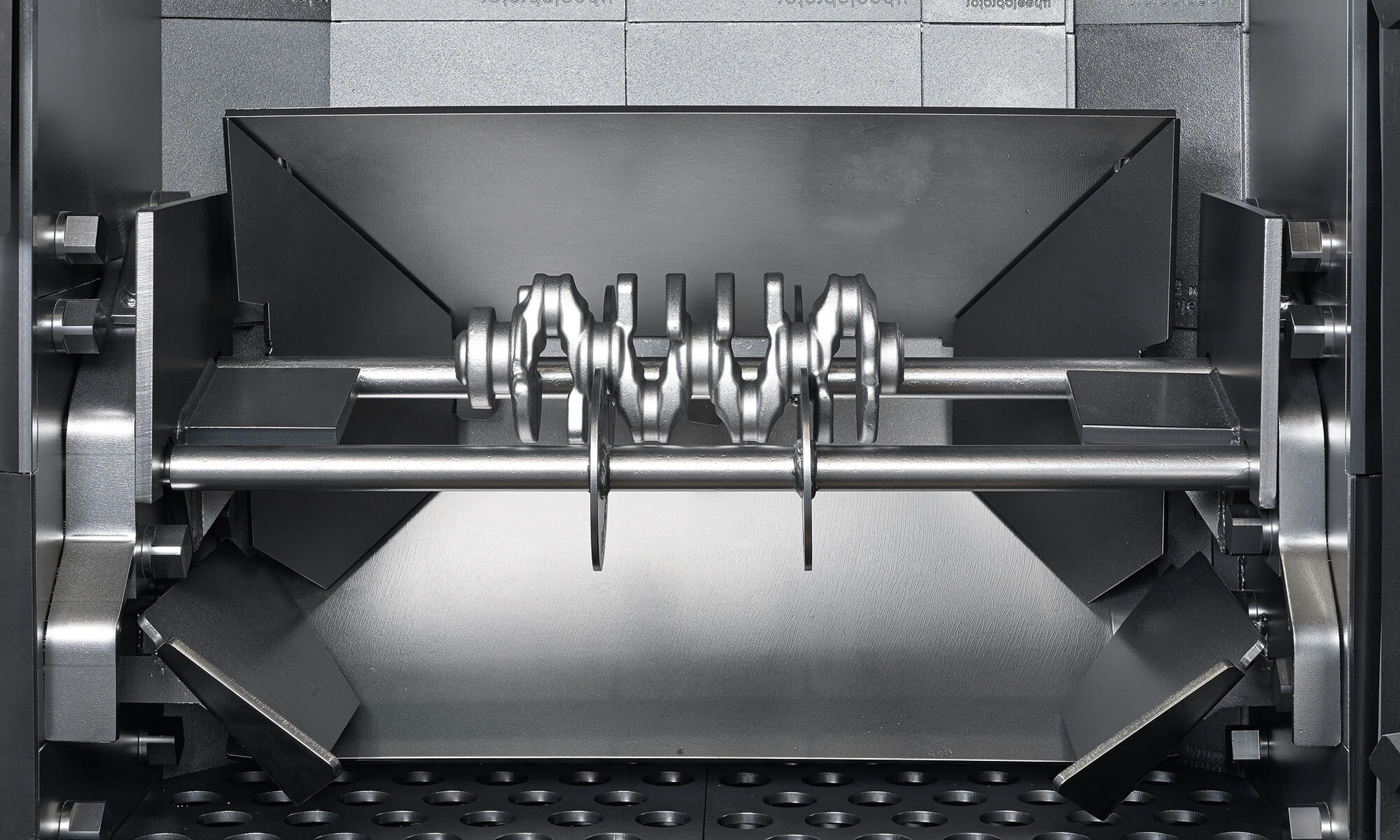

Each compartment is equipped with a rotating spinner hook, enabling full part exposure in front of the blast wheels and eliminating blast shadows. Ideal for descaling, deburring, and sand removal, the SPH is particularly well-suited to aluminium parts, castings, and forged components of varying shapes and sizes.
Applications
- Surface treatment and cosmetic finishing of aluminium parts
- Deburring of machined or die-cast components
- Sand removal from castings (especially complex geometries)
- Descaling of forged or heat-treated components
- Pre-treatment before coating, welding, or assembly
Key benefits
Simultaneous Operation
Load/unload one compartment while blasting in another—no downtime between cycles
360° Coverage
Spinner hooks rotate continuously and index through multiple positions during blasting
No Pit Required
Compact, freestanding design with easy access for maintenance
Advanced Blast Wheel Technology
Highly energy-efficient and reversible blast wheels with adjustable abrasive flow
Automation Ready
Robotic loading/unloading options and integration with manufacturing cells
Safe & Sealed
Wear-resistant linings, dual safety interlocks, and advanced sealing system to prevent abrasive leakage
Industries
- Automotive and light engineering
- Aerospace and precision casting
- Foundries (ferrous and non-ferrous)
- Forging and heat treatment
- General and precision manufacturing
Configuration / Options
Hook Load Capacity
- Hook Load Capacity: 150 kg to 600 kg per hook, depending on machine size
- Maximum Workpiece Diameter: 300 mm to 850 mm
- Maximum Workpiece Height: 900 mm to 1,500 mm
Blast Wheels
- Blast Wheels: 2 to 4 wheels per machine, depending on throughput and coverage requirements
- Blast Wheel Power: 3.75 kW to 15 kW per wheel
- Blast Wheel Type: TITAN wheels with reversible rotation and mechanical impeller-based media acceleration
Chamber Layout
2- or 3-compartment revolving chamber for continuous load/blast/unload cycles
Automation Options

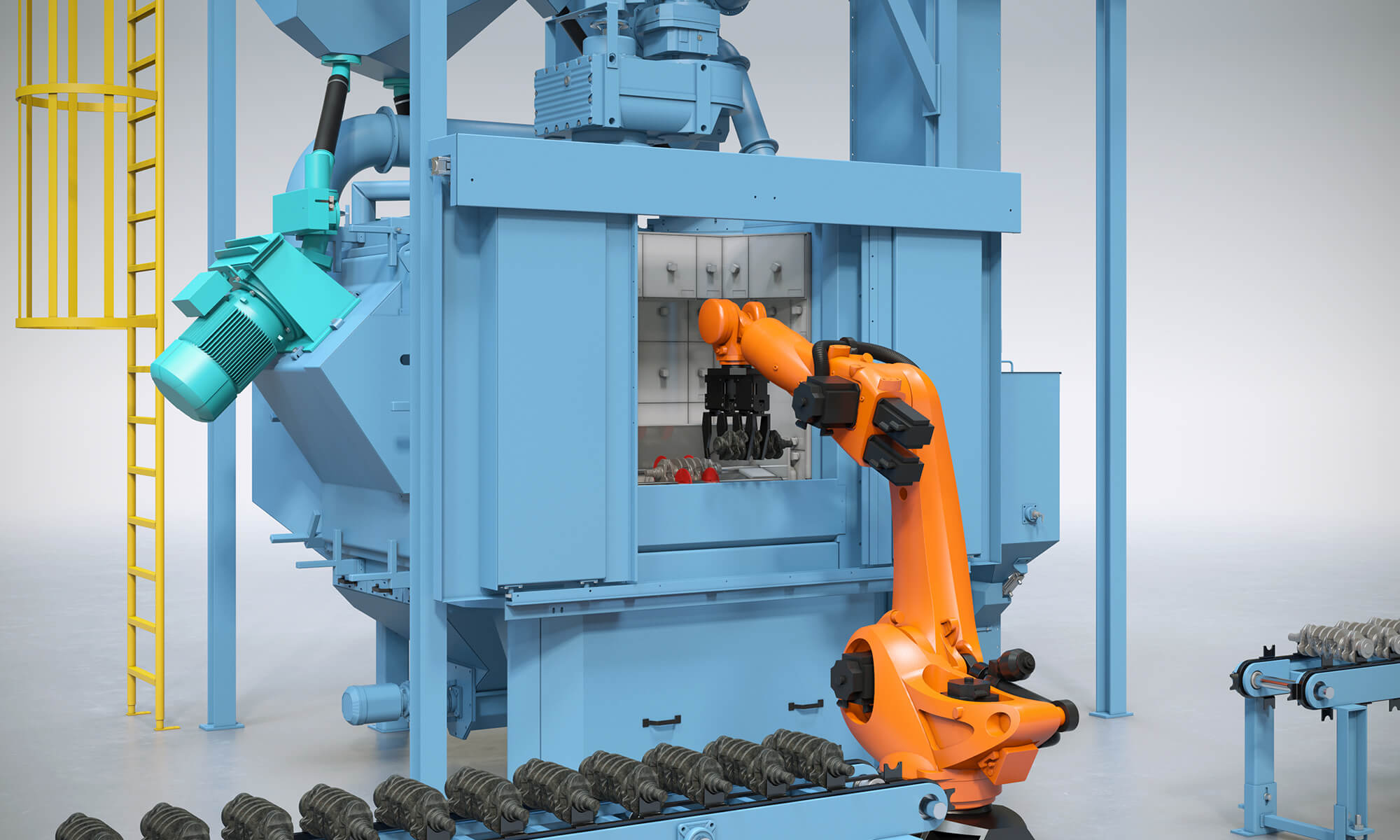

- Robotic or hoist-assisted loading and unloading
- Integrated air nozzle or blow-off station
- Programmable positioning for multi-angle exposure
Dust Extraction
- Model-specific systems ranging from 1,400 to 5,200 m³/h
- ATEX-compliant dust filtration systems
Installation
- Compact design with no pit required
- Ergonomic maintenance access via rear service doors
Control System
PLC-controlled cycle programming with recipe recall for consistent processing
