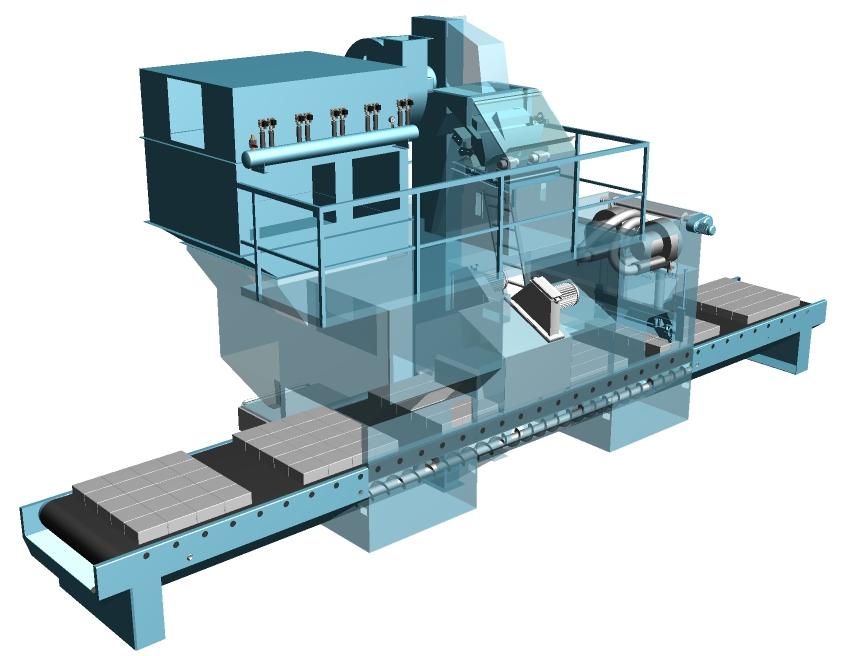

Concrete Block Machine (LBG)
The Concrete Block Machine LBG is a purpose-built shot blast system designed for high-speed surface texturing of concrete products such as blocks, kerbstones,slabs, and pavers. By creating a uniform blasted finish, the LBG enhances the aesthetic value and surface character of the product—ideal for premium architectural applications.

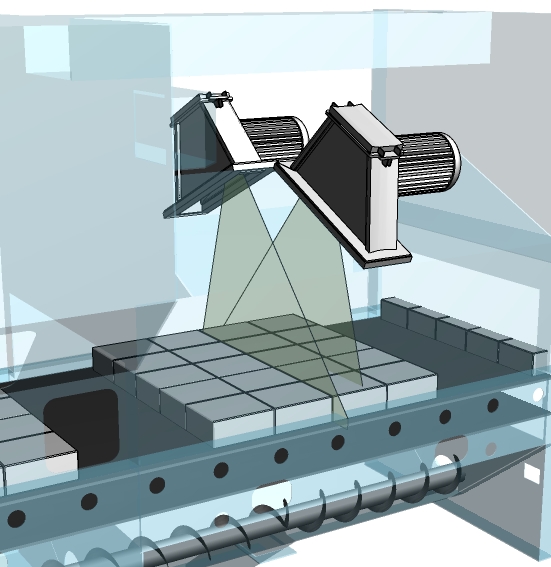

The machine uses a series of adjustable blast wheels, strategically positioned to treat both horizontal and vertical surfaces. With options for two to four wheelsand programmable start/stop functions, the system delivers highly controlled surface finishes while preserving the dimensional integrity of delicate concretesubstrates.
Applications
Surface texturing of decorative and architectural concrete blocks
Aesthetic finishing of kerbstones, fence blocks, and block steps
Uniform blasting of concrete slabs and pavers for premium outdoor applications
Key benefits
Enhanced Product Value
Uniform surface texture improves the visual appeal and market value of concrete products
Precise Surface Control
Adjustable blast wheels and dosage regulation ensure consistent surface results even at high speeds
Flexible Operation
Supports both continuous and indexing modes with belt speeds from 2.5 to 14 m/min
Gentle Part Handling
Transverse ribs on the belt reduce part drift and ensure positional accuracy for robotic unloading
Low Maintenance
Hardened tool steel wear parts extend service life and reduce downtime
Industries
- Concrete block and paver production
- Landscaping and garden product manufacturing
- Building materials and architectural precast
Configurations / Options
Working Widths
600 mm to 1,500 mm
Workpiece Height
Up to 500 mm (model dependent)
Belt Speed
2.5 to 14 m/min (stepless adjustment)
Blast Wheels
2 to 4 wheels
Dust Collection
ATEX-certified cartridge filters or wet filter units
