Mesh Belt
The Mesh Beltshot blast machine (LBS series) is designed for thecontinuous surface treatment of flat and complex-shaped componentsin a pass-throughprocess. Engineered for flexibility and precision, the Mesh Belt system is ideal forlight to medium-duty applications, including rust and heat scale removal,cosmetic finishing, and deburring.

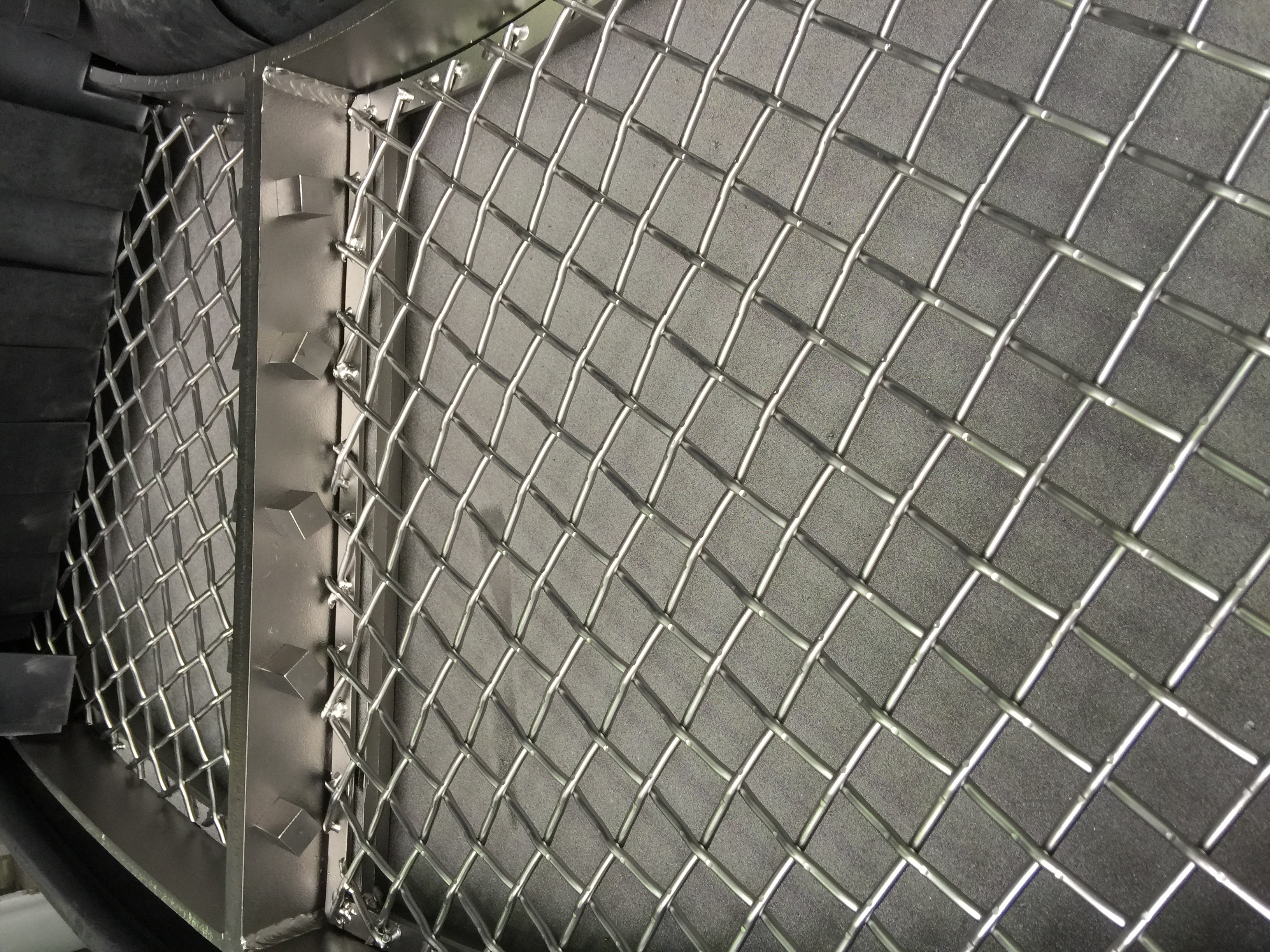

Equipped with 4 or 8 high-efficiencyTITAN blast wheelsarranged at strategic horizontal and vertical angles, the machine ensuresfull and uniform surfacecoverage. A durablemanganese steel mesh beltsafely and gently transports parts through the blast zone, supporting a wide range of workpiece geometries withminimal mechanical stress.
Applications
Rust and heat scale removal from steel and aluminium parts
Deburring of castings and formed parts
Surface preparation before coating, welding, or machining
Finishing of gear housings, flanges, and die castings
Cosmetic or structural roughening of flat components
Key benefits
Continuous Through-Feed Process
High throughput without sacrificing blast quality
360° Coverage
Angled wheel arrangement creates complete X-shaped blast pattern
Wear-Resistant Design
Hardened manganese steel mesh belt and blast cabinet liners
Process Versatility
Ideal for both flat parts and more intricate components
Compact, Pitless Installation
Easy to install and integrate into existing lines
Industries
- Foundry and die casting
- Automotive component manufacturing
Configurations / Options
Workpiece Size
Widths up to 1,500 mm
Heights up to 500 mm
Blast Wheels
4 to 8 TITAN blast wheels
Power per wheel: 7.5 – 22 kW
Total abrasive flow
Up to 1,500 kg/min
Mesh Belt
Manganese steel mesh for high durability
Automatic pneumatic belt tensioning
Belt height from 900 mm to 2,600 mm depending
on model
Machine Height (No Pit Required)
From 4,700 mm to 8,800 mm depending on
configuration
