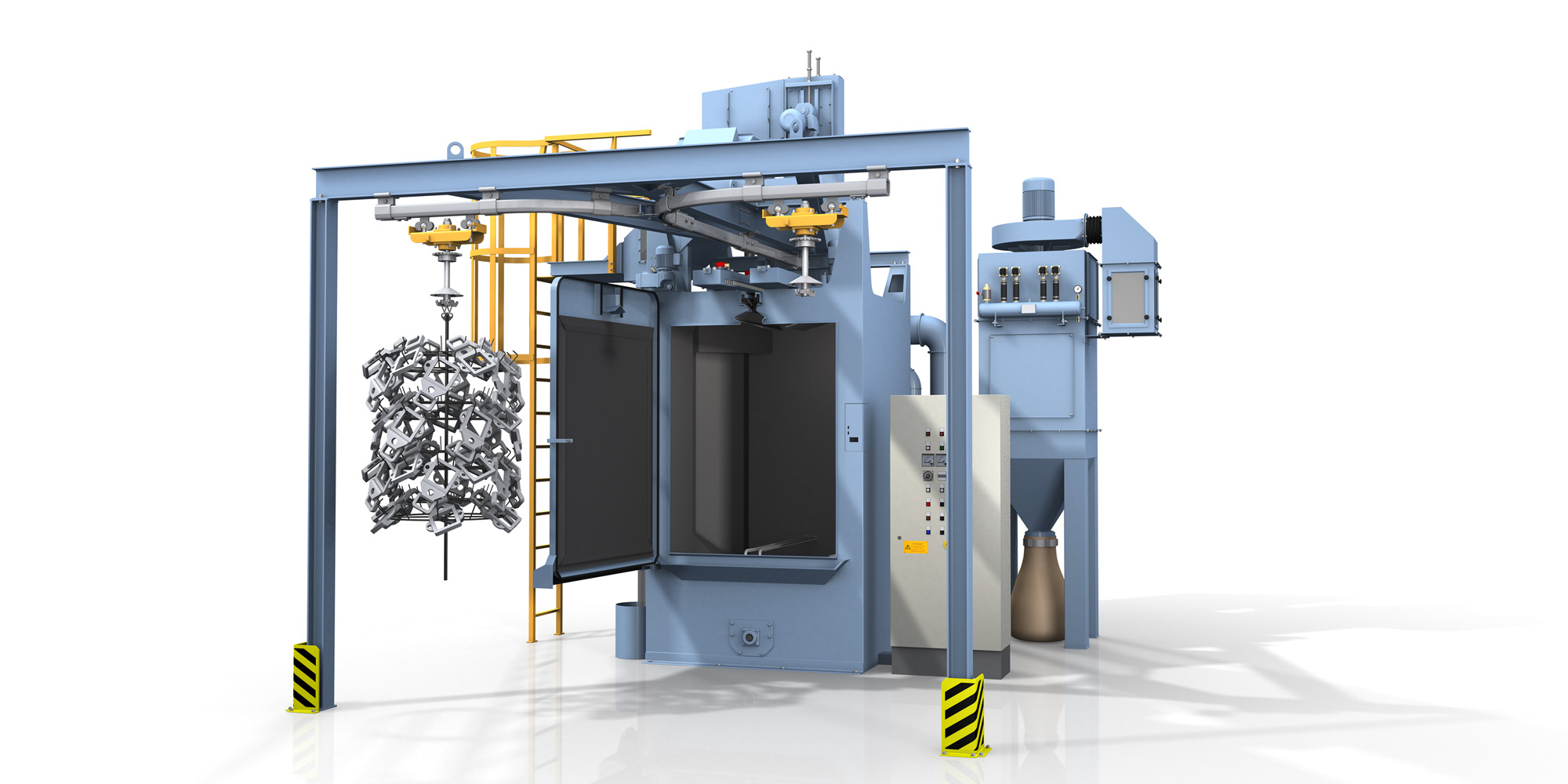

Overhead Monorail (HTS)
The HTS Overhead Monorailis a powerful and versatile blast cleaning system designed for foundries and forges handling medium to heavy-duty components.Engineered for flexibility and durability, it supports both reversible and through-feed operation, with multiple blast wheel configurations and customisablemonorail layouts.
The HTS system delivers outstanding performance insand removal,decoring, descaling, and surface preparation, while optimised transport and blasting systemsensure full surface coverage and minimal handling. With a robust manganese-steel construction and CE-certified safety standards, the HTS is built for long-term reliability in demanding environments.

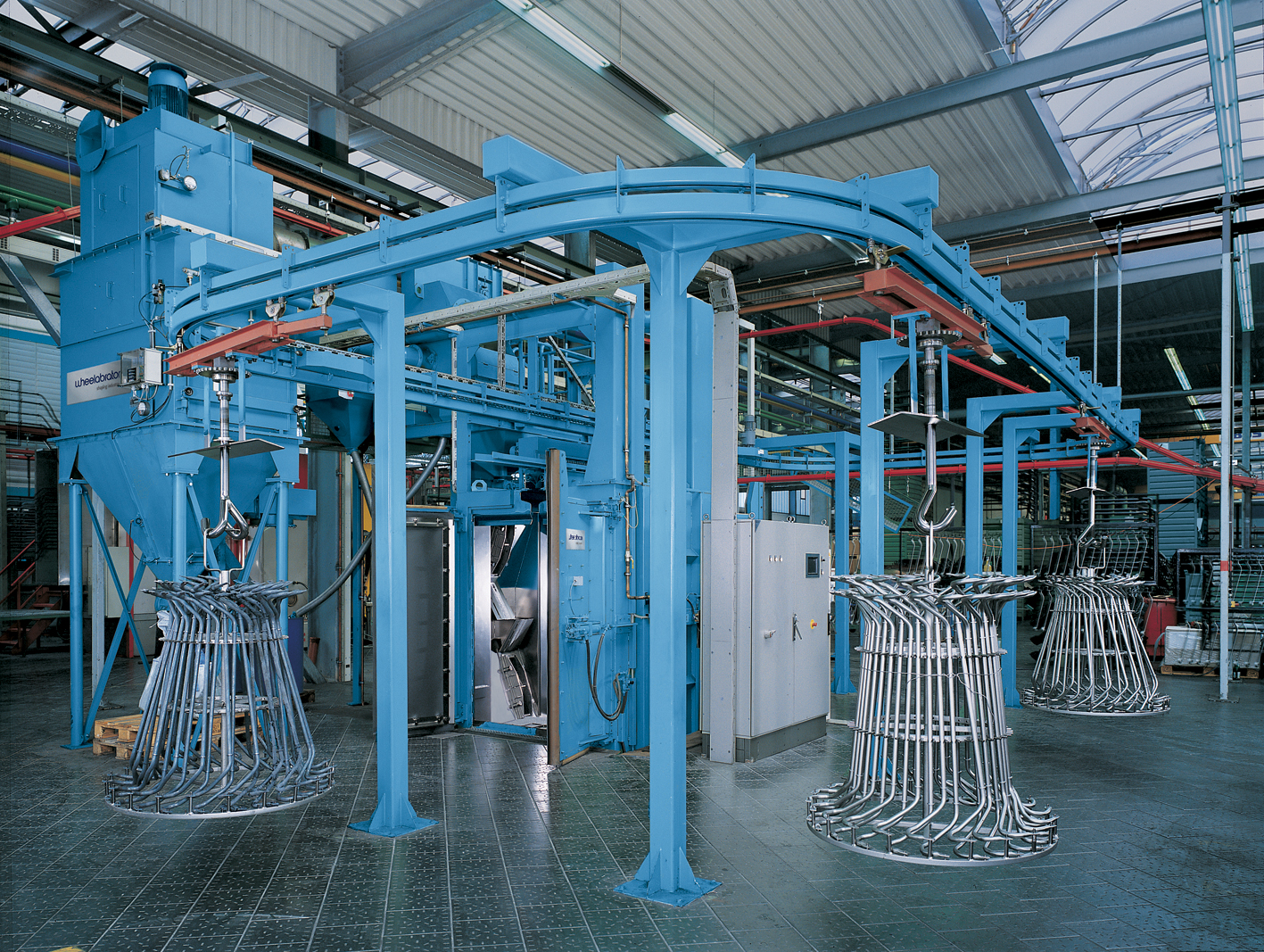

Applications
- Sand removal and core removal from iron, steel, and light metal castings
- Descaling of forged or heat-treated components
- Surface preparation prior to coating or finishing
- Deburring
- Rust, corrosion, and scale removal
Key benefits
Robust Construction
Heavy-duty welded housing and 12 mm manganese wear liners for maximum durability
Flexible Operation
Supports both reversing and through-feed modes; manual or automatic hanger options available
Efficient Coverage
Rotating and multi-position hangers ensure uniform blast exposure, eliminating shadows
High Cleaning Performance
Up to 4 blast wheels and 1,200 kg/min abrasive flow for rapid, thorough treatment
Integrated Separation
Dual magnetic drums and air-wash units provide effective abrasive cleaning
Low Maintenance
External bearings, bolt-on liners, and vibration sieves simplify upkeep and extend machine life

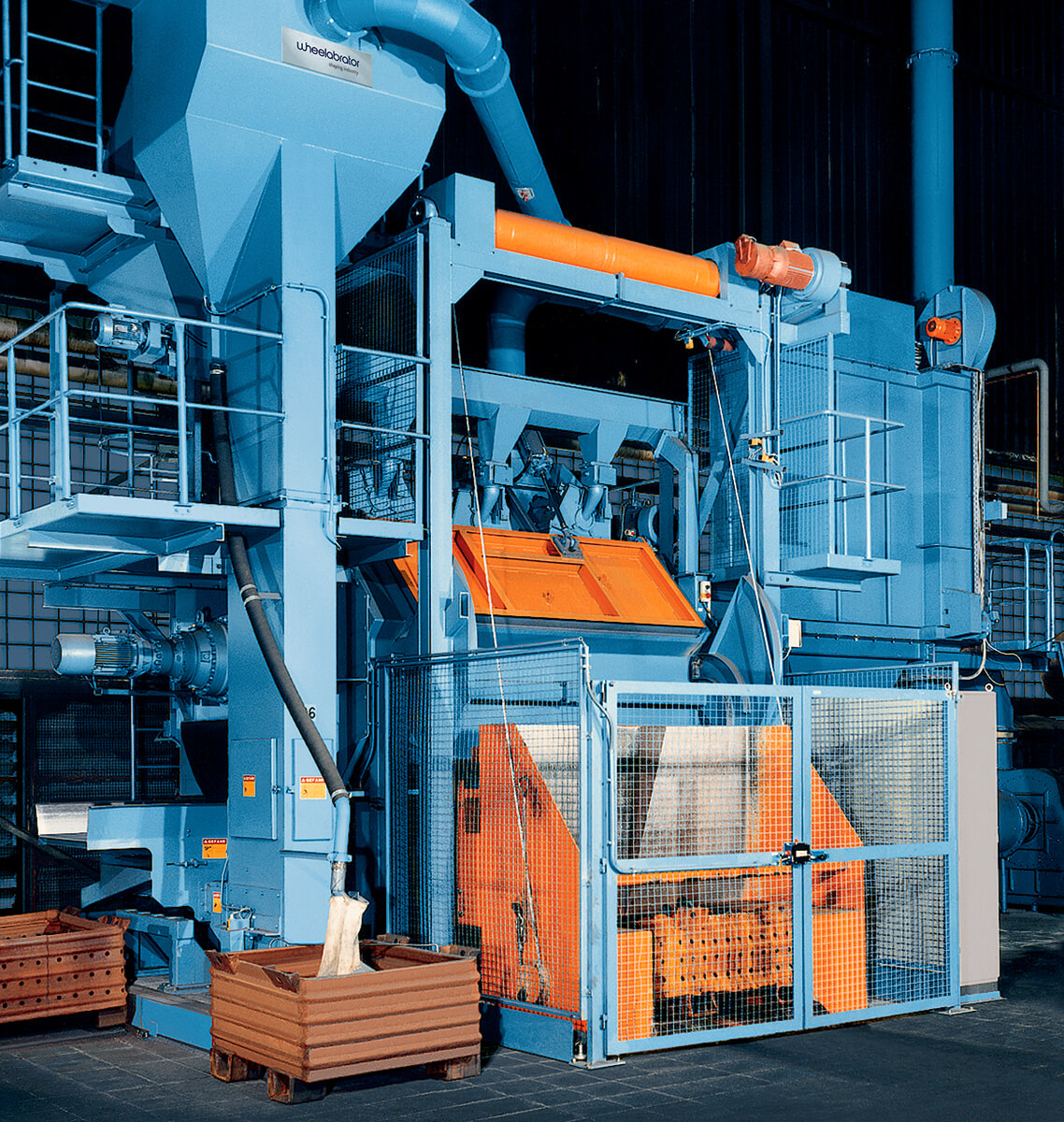

Industries
- Foundry and metal casting
- Forging and heat treatment
- Automotive and rail
- General engineering and heavy industry
Configurations / Options
Workpiece Capacity:
- Envelope diameters: 1,100–1,500 mm
- Hanger height: up to 2,100 mm
- Max hook load: 1,500 kg
Blast Wheels:
- 2 to 4 blast wheels
- Power: 11–22 kW per wheel
- Up to 1,200 kg/min abrasive flow
Conveyor Options:
- Manual or electric hooks
- Single-track, Y-track, or closed-loop monorail
- Electric hoists and lifting devices
Media Handling & Filtration:
- Lower vibrating sieve or rotating scalping drum
- Dual magnetic separator + airwash
- Optional cartridge or rotary dust collectors
Additional Options:
- Pitless design
- Frequency converters (wheel & hook)
- Replenisher unit
- Adjustable blast positions
