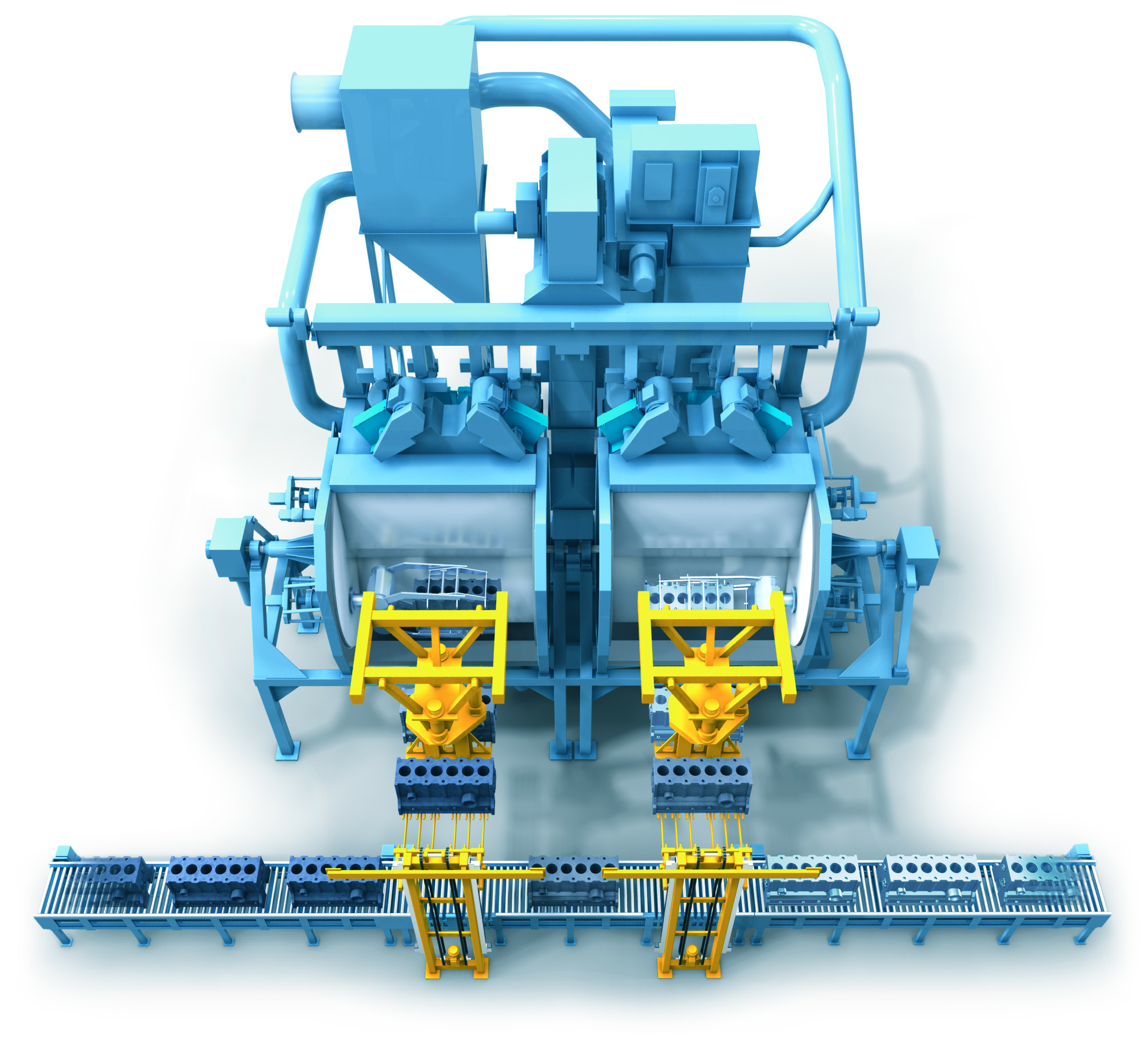

Robot Gripper (RG)
The Robot Gripperis an advanced shot blast system that combines robotic part manipulation with high-performance wheel blasting, delivering precise andefficient surface treatment of sensitive, complex, or high-value components. By integrating a fully programmable industrial robot into a sealed blast chamber via apatented membrane seal, the Robot Gripper ensures optimal exposure, control, and protection throughout the blasting process.
Ideal for applications requiring targeted treatment of defined areas—such as castings, gear components, or aerospace parts—the Robot Gripper enablesexceptional repeatability, high-quality results, and reduced handling risk.
Applications
- Removal of fire cracks and burrs on castings
- Targeted shot peening of fatigue-prone features (e.g. gear teeth, landing gear)
- Cosmetic finishing of aluminium, magnesium, or filigree components
- Blasting of small, sensitive parts that cannot tolerate tumbling
- Localised cleaning of internal or hard-to-reach surfaces
Key benefits
High Precision Blasting
Robotic arm offers fully programmable 3D movement for accurate positioning within the blast stream
Efficient Operation
Optimal wheelblast energy usage, minimal media loss, and fast cycle times
Compact & Accessible Design
No foundation required; easy maintenance via ergonomic layout and external blast wheels
Safe and Sealed
Patented membrane seal system fully protects the robot and environment from dust and abrasive
Flexible Integration
Fits into automated production cells with programmable handling before and after blasting
Industries
- Automotive (e.g. gearbox housings, steering boxes, magnesium parts)
- Aerospace (e.g. landing gear, air brakes)
- Precision die casting
- Foundries (integrated into die cast cells)
- Medical and general engineering
Configurations / Options
Blast Wheel Configuration
- High-performance wheels mounted externally for easy access
- Optional airblast nozzle for pinpoint blasting or touch-up work
Robot Interface
- Integrated gripper arm with interchangeable fixtures
- Dual-robot setups for increased throughput
- Docking via patented rubber membrane seal with 2-layer safety structure
Abrasive Recovery
- Bucket elevator, abrasive silo, and vibro sieve
- Airwash separator and cartridge filter for dust collection
Automation Features
Programmable sequences for blasting, unloading, and return-to-line
Defined part rotation/blow-off after blasting to remove residual media
Easy part exchange via automated tooling
Dust Collection
ATEX-certified cartridge filters or wet filter units
