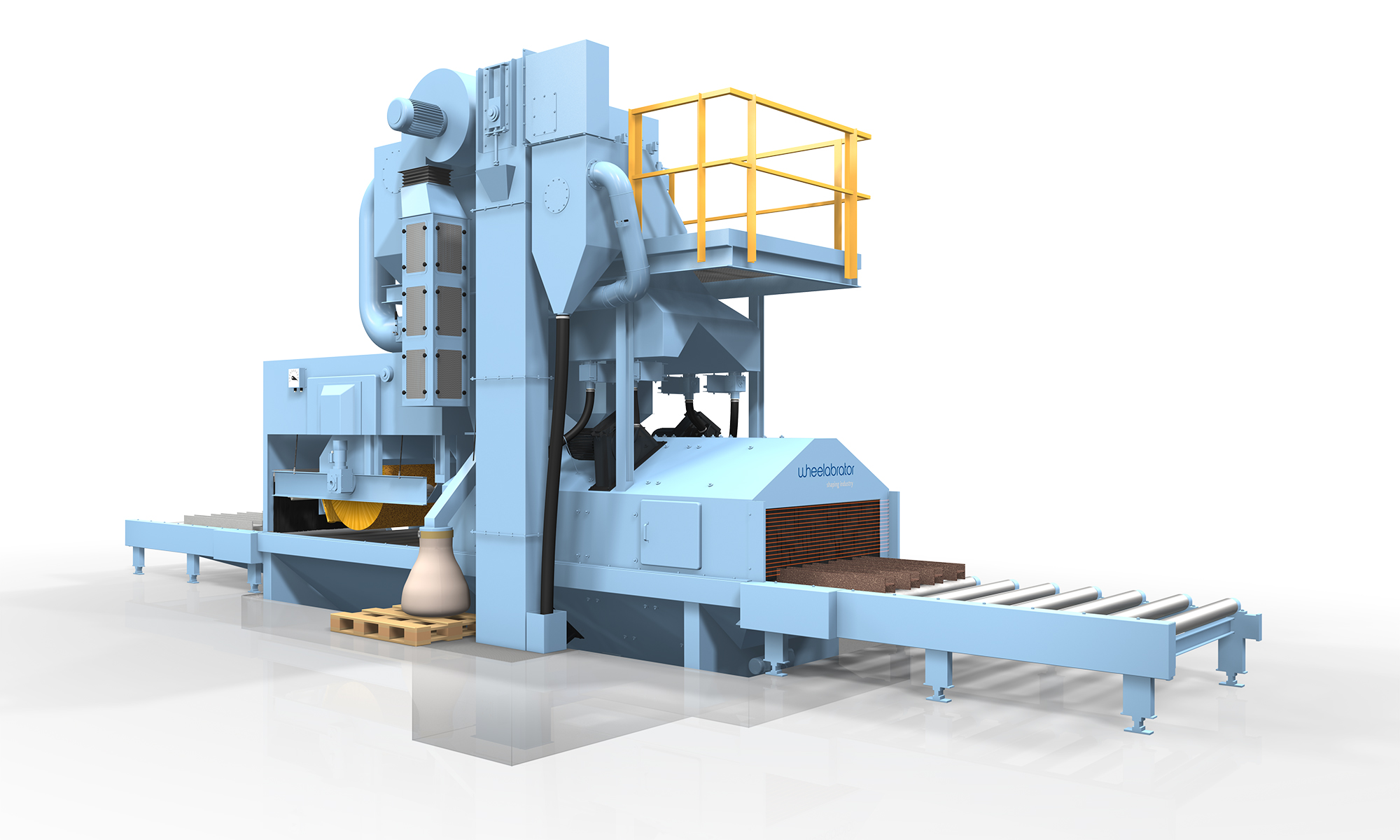

Roller Conveyor (Type G)
The Wheelabrator Roller Conveyor Type G is a versatile and reliable shot blast solution designed for the continuous surface treatment of metal plates, profiles, and tubes. Engineered for medium-duty applications, it offers proven performance, a compact footprint, and flexible configuration options to suit a wide range of production requirements.

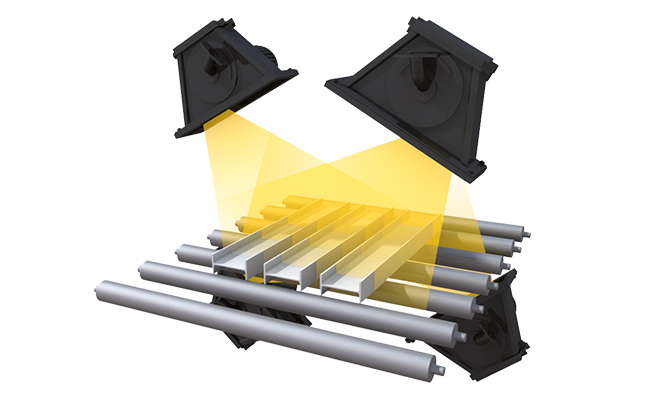

Available in widths from 600 mm to 3,000 mm, the Type G range can be supplied as standalone units or integrated into automatic transport, cutting, or bore line systems. With vertical blast wheel positioning and hardened manganese construction, it delivers consistent cleaning quality with excellent wear resistance.
Applications

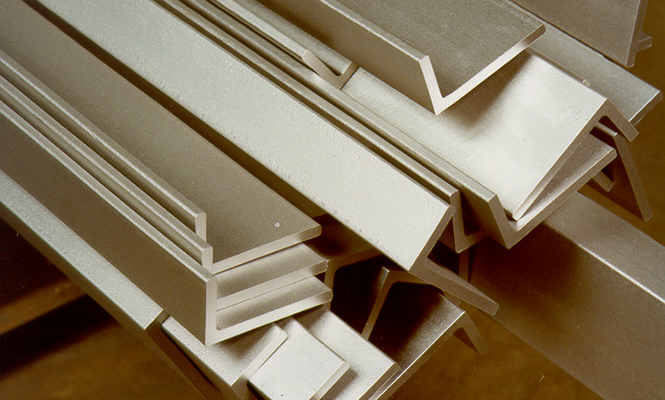

- Rust and scale removal from steel plates and profiles
- Surface cleaning before welding, cutting, painting, or coating
- Corrosion removal from processed or stored materials
- Tube and pipe cleaning for general fabrication
Key benefits
Compact and Efficient
Ideal for medium-duty cleaning and descaling in fabrication and steel processing lines
Flexible Configurations
Available with 4, 6, or 8 blast wheels depending on workpiece geometry and throughput needs
High-Quality Blasting
Standard Type 5.x wheels (or optional TITAN/ETA wheels) ensure consistent surface finish
Low Maintenance Design
Easy-access components and smart wear protection reduce downtime and servicing costs
No Foundation Required (RB600–RB1500)
Smaller models are pitless for simpler installation
Easy Line Integration
Compatible with cross-feeds, conveyors, and other production systems
Industries
- Steel fabrication and construction
- General engineering and machinery
- Steel stockholding and service centres
- Pipe and profile processing
- Infrastructure and equipment manufacturing
Configuration / Options
Machine Widths
RB600G to RB3000G
Inlet widths
700 mm to 3,300 mm
Blast Wheels
- 4, 6, or 8 blast wheels
- Power: 5.5–18.5 kW per wheel
- Optional: ETA or TITAN wheels for enhanced efficiency and media control
- Process Speeds: 0.8–3.0 m/min to achieve B Sa 2.5 (ISO 8501)
Roller Pitch
Standard: 650–800 mm
Optional: 400 mm for smaller parts
Dust & Media Management
- Cartridge filters with ATEX-certified impact separators
- Magnetic and airwash separation systems
- Interchangeable rotating brush segments and blow-off stations for media removal
Construction Features
- 10 mm thick manganese liners in high-wear areas
- Vulkollan or rubber curtains to prevent abrasive leakage
- Modular abrasive reclaim and loading systems
