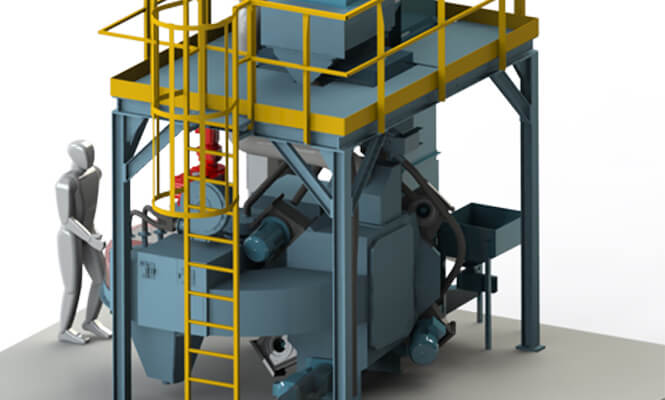

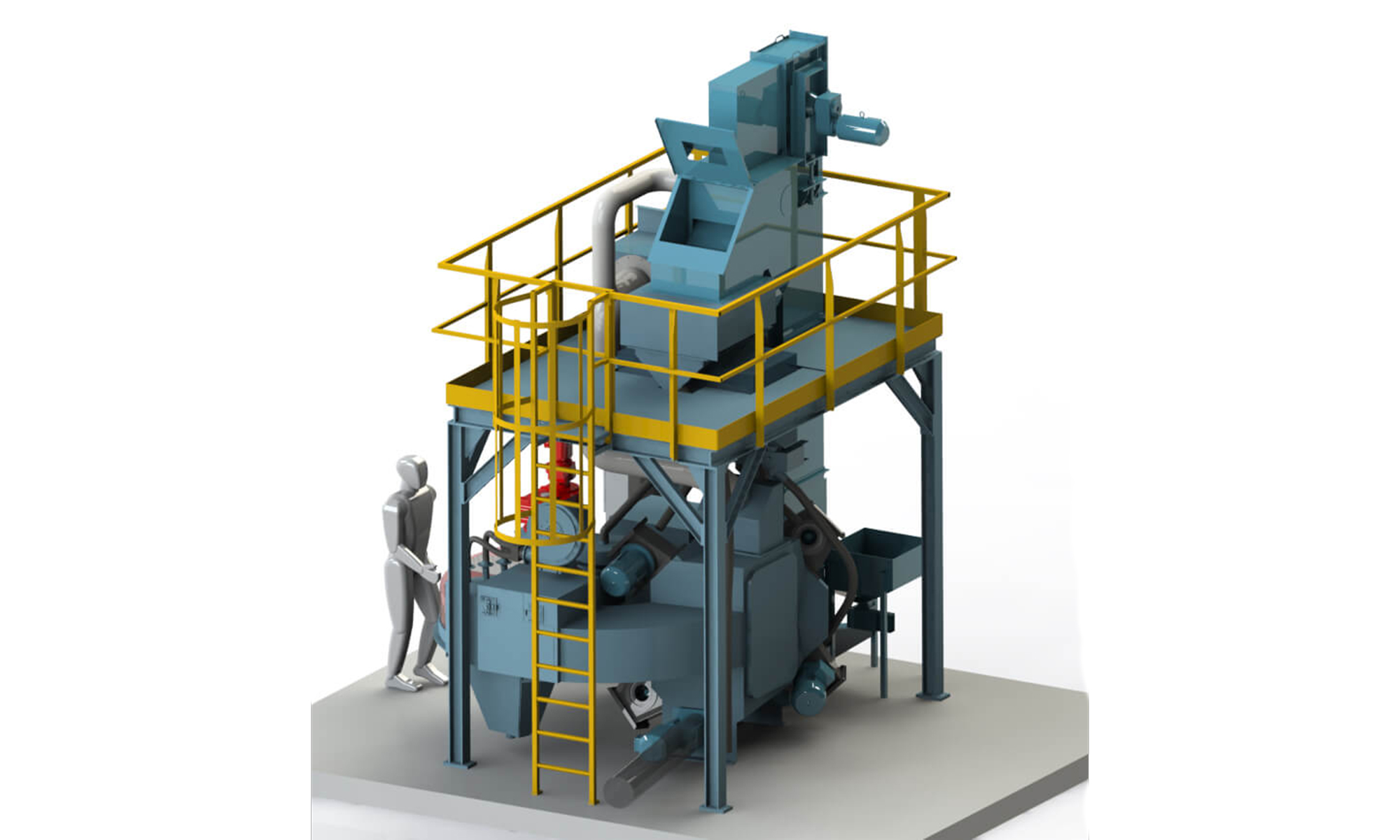

Rotary Mesh Table (RMT)

The Rotary Mesh Table (RMT) is a compact, high-efficiency blast machine designed for continuous processing of smaller workpieces with a minimal footprint and fast setup. Utilising a rotating ring-shaped mesh belt, the system allows loading and unloading from the same position—ideal for single-operator use in high-mix, low-volume production environments.

Equipped with four direct-drive TITAN blast wheels targeting from above and below, the RMT delivers complete, all-around blast coverage in one pass. Its spring-steel wire mesh belt ensures maximum durability while allowing consistent blast access to every surface of the part.

Applications

Removal of mill scale and forge scale
Rust and oxidation removal from cut or machined components

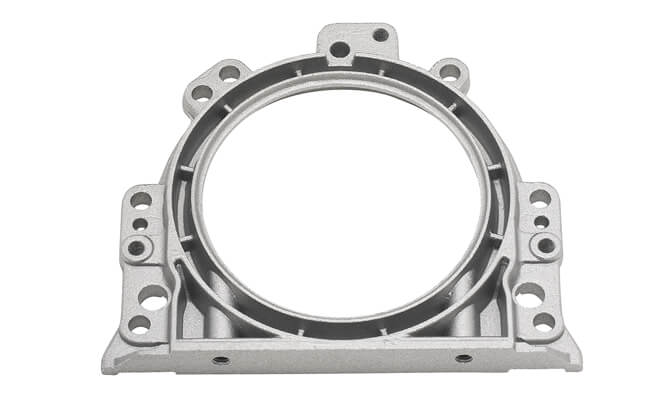

Cosmetic blasting and surface prep of small castings and technical parts

Key benefits

Compact & Mobile

Minimal installation area with no foundation pit required

360° Coverage

Four TITAN blast wheels positioned above and below the belt for complete cleaning in a single cycle

Simple Operation

Load/unload from one side at ergonomic height; can be run by a single operator

Flexible Loading

Manual or automated loading/unloading options available

Fast Commissioning

Delivered fully assembled; plug-and-play design for quick setup

Variable Speed

Adjustable pass-through speeds up to 4.5 m/min for tailored cleaning intensity

Industries

Foundry and die casting
General manufacturing
Jobbing shops and maintenance workshops
Precision metalworking and fabrication

Configuration / Options

Blast Wheels

4 x TITAN 14.3 (7.5 kW each)

Abrasive Velocity

Approx. 60 m/s (mechanical pre-acceleration via impeller)

Max Part Size (W x L x H): 400 x 400 x 300 mm
Max Single Workpiece Weight: 20 kg

Max Total Load Weight: 500 kg
Displacement Speed: Variable (up to 4.5 m/min)

Loading Height: 850 mm
Total Connected Load: 42 kW

Overall Height: 5,150 mm
Installation Area: 3.2 x 2.8 m (no pit required)
Paintwork: RAL 5024 (Pastel Blue)
