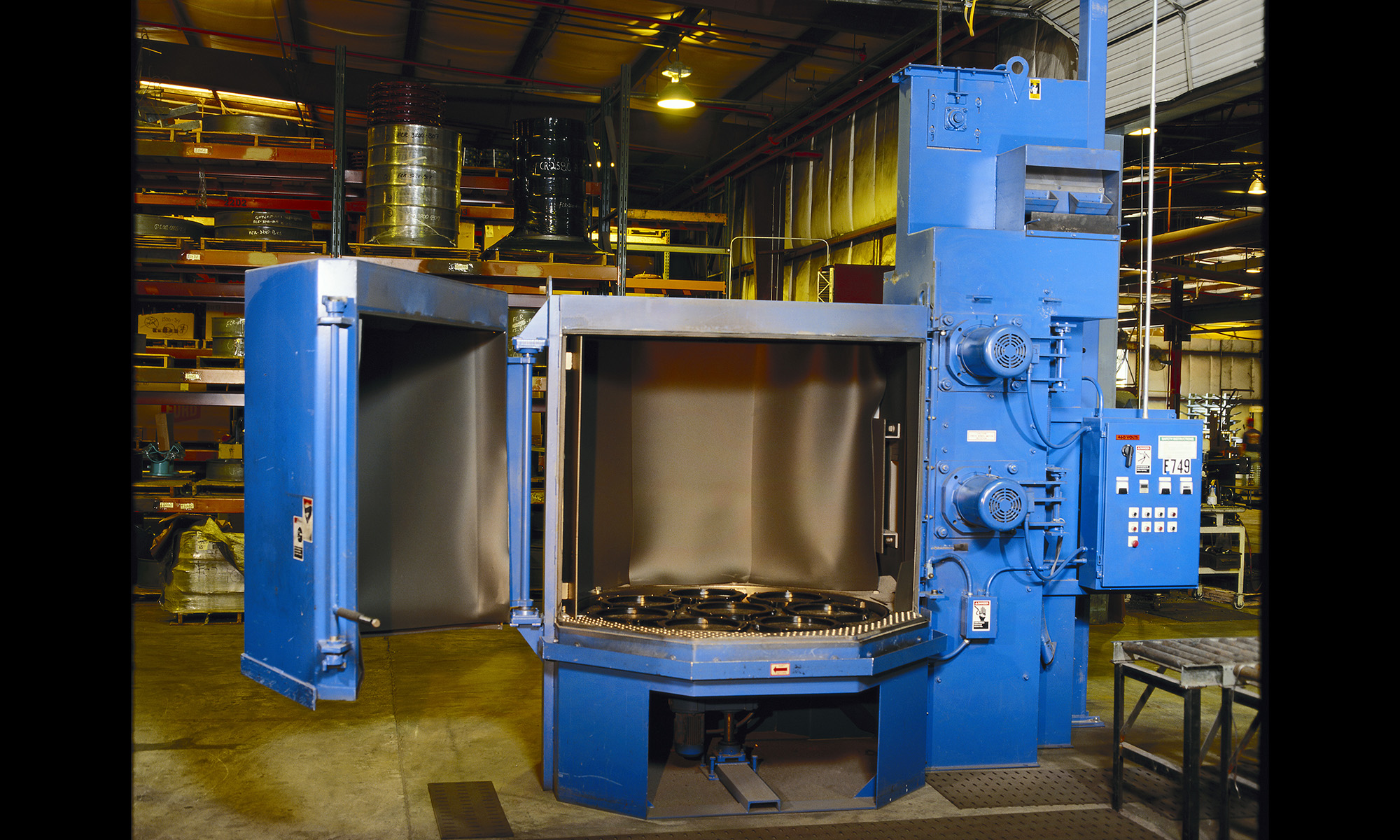

Rotary Table (TAS/RT)
The Rotary Table shot blast machine delivers precise, repeatable, surface treatment for semi-automatic production.
Developed for demanding production environments such as the automotive industry, foundries, or steel fabricators, the system ensures uniform blast results, short cycletimes, and low production costs.

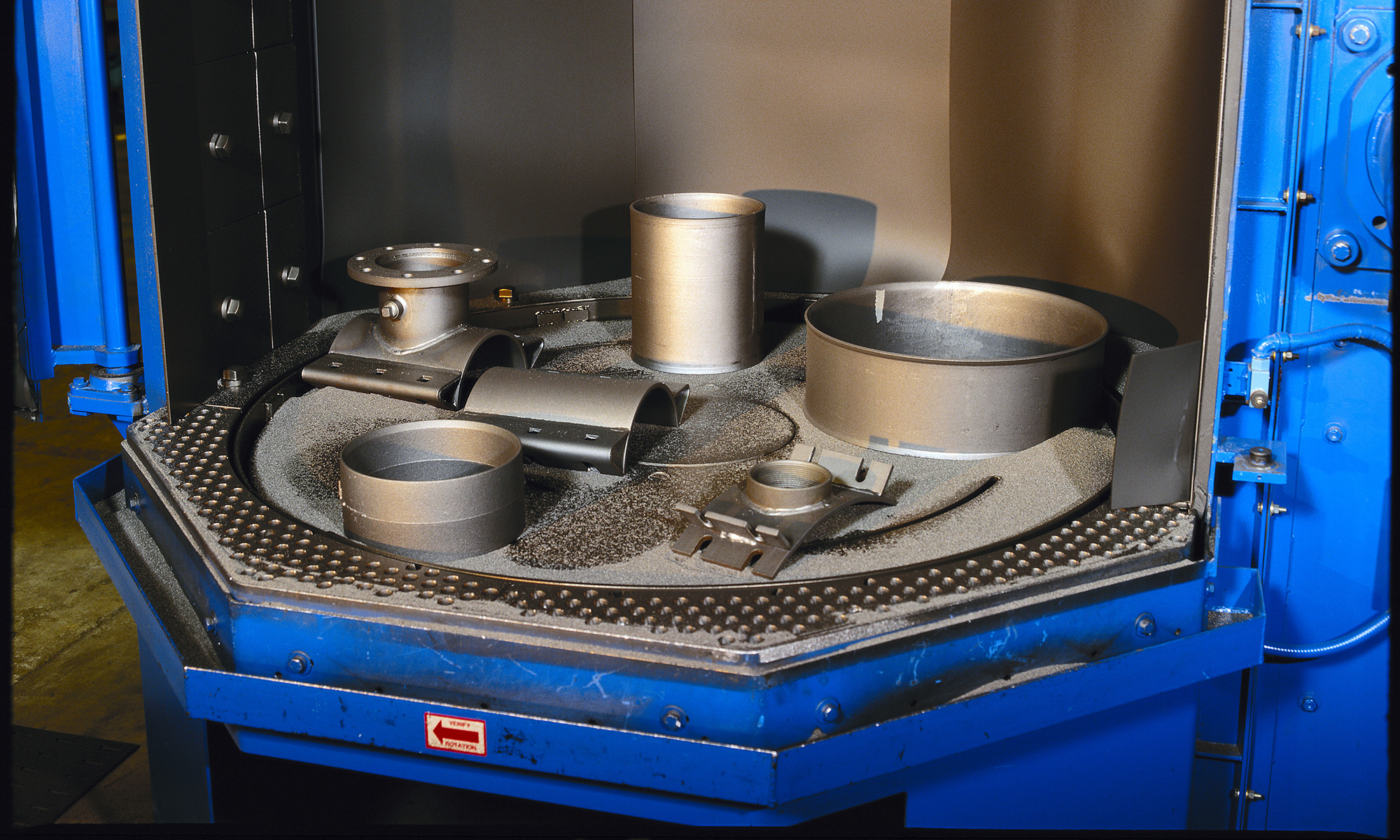

Each machine features a rotating table ormulitpleseparately driven satellites tables that allow continuous processing - loading/unloading while blasting occurssimultaneously. Available with horizontally or vertically arranged blast wheels, the Rotary Table can be configured for cleaning, descaling, or shot peening, depending onthe application.
The design supports manual or robotic handling, with minimal floor space requirements, delivering reproducible results and maximum process reliability.
Applications
- Shot peening
- Surface finishing
- Burr and flash removal
- Hard scale removal
- Rust and heat scale removal
- Blast cleaning
Key benefits
Available in dual table and multi-table configurations whereworkpieces can be loaded and unloaded while others are processed, ensuring continuous operation
Uniform and reproducible blast results for consistent surface quality
Short indexing and cycle times for high throughput
High blast performance with precise control of blast parameters
Low process and maintenance costs
Flexible configurations for symmetric and non-symmetric parts (e.g., shafts, gear wheels, motor blocks)
Compact footprint with versatile transport and automation options
Advanced process reliability package for Industry 4.0 monitoring and control:
- Control of shot speed, flow rate, and blast pattern
- Automatic readjustment and vibration-based wear testing
- Satellite and blast wheel speed regulation
Industries
- Automotive and powertrain manufacturing
- Foundry and forging
- Medium to heavy engineering
- Aerospace component processing
Configuration / Options
Turntable design
Single table in swing door or clam shell configurations,1.2m -3.0m diameters
Blast Wheels
- Horizontal, vertical, or oscillating wheels (60° blast stream coverage)
- Roof blade option to expand blast area (~120 mm)
Power per blast wheel
11–22 kW (2 wheels standard)
Multiple satellite table configuration
Multiple satellite table configuration for simultaneous loading/unloading and blasting, 300mm-600mm diameters
Dual swing door
Dual swing door configuration for continuous use
Robotic handling
Robotic handling for automated part loading/unloading
Optional accessories
- Camera detection and control
- Marking and blow-off stations
- Fault analysis display
- Carriage for workpiece holders
