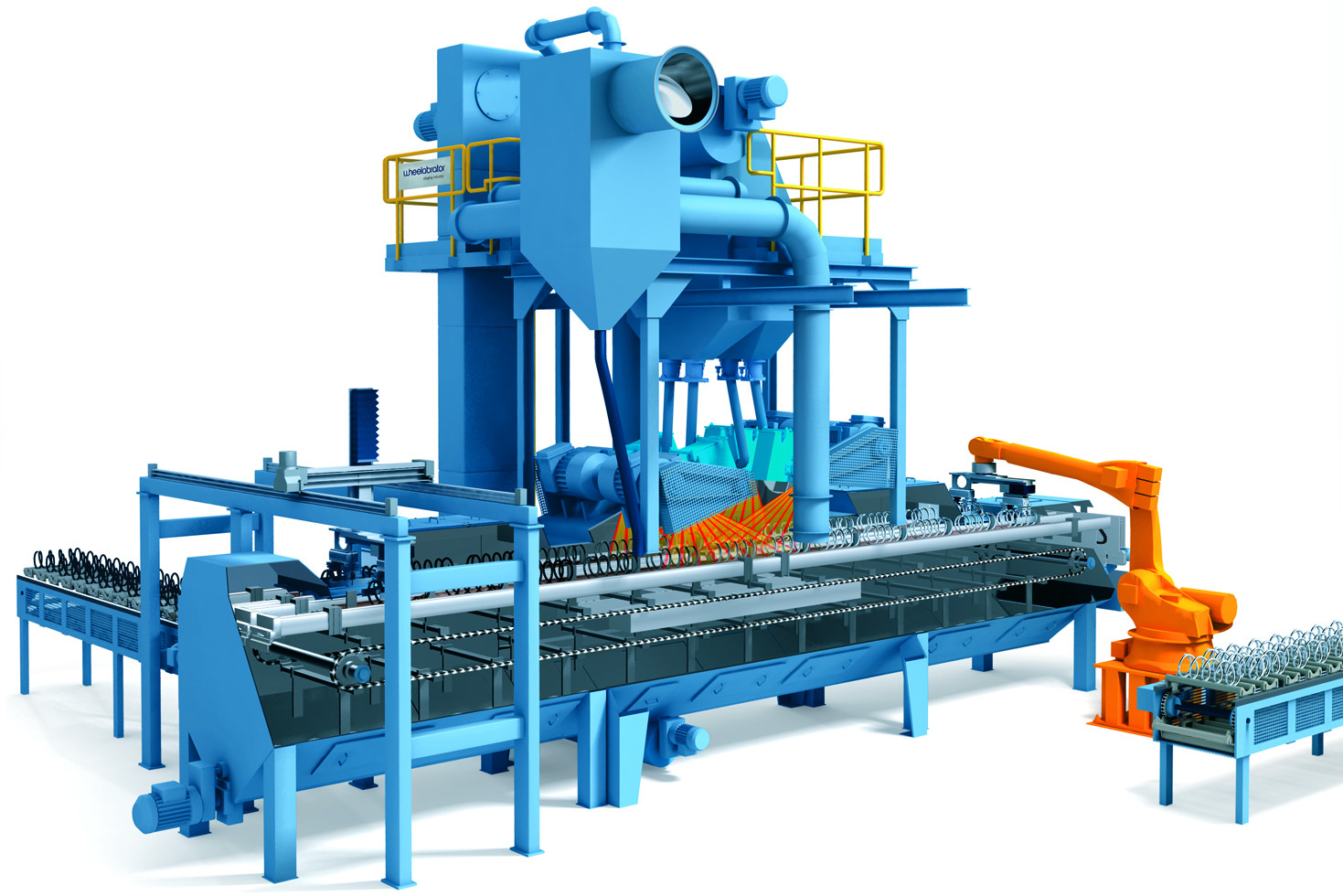

Spring Peening Machine (RDS)
The Spring Peening machine is a high-capacity, rotary through-feed shot peening system specifically engineered for thecontinuous treatment of coil springs—includingsuspension, valve, and disc springs. Designed for fully automated integration into production lines, it delivers process-stable, repeatable peeningat high throughput rateswhile meeting the rigorous standards of theautomotive, aerospace, and industrial sectors.

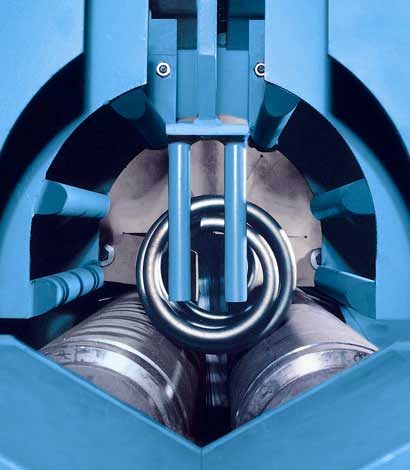

Springs are conveyed through the blast zone on horizontally rotating rollers while being continuously rotated, ensuringuniform peening coveragealong their full lengthand circumference. With optional single- or double-strand configurations and up to four high-performance blast wheels, the Spring Peening machine is ideal for high-volume manufacturing environments where consistency, durability, and traceability are essential.
Applications
- Shot peening of coil springs for fatigue strength
- Treatment of rotational parts like gears, hubs, and clutch components
- Surface enhancement for dynamic, safety-critical mechanical parts
- Pre-treatment before coating or heat treatment
Key benefits
High-Throughput Continuous Operation
Processes up to 1,200 axial springs or 5,800 valve springs per hour
Full Circumferential Peening
Rotating carrier rollers ensure 360° exposure during peening
Process Reliability
Precisely defined parameters for shot quantity, wheel speed, and part dwell time
Efficient Design
Compact footprint with robust wear-resistant construction for long service life
Flexible Integration
Easily installed into automated production lines with optional robotic or modular loading/unloading
Media Quality Assurance
Integrated shot separation system maintains optimal shot size and coverage
Industries
- Automotive
- Commercial vehicle and rail
- Aerospace
- Powertrain and suspension component manufacturing
- Spring suppliers for OEM and Tier 1
Configurations / Options
Workpiece Range
- Outer diameter: 20–250 mm
- Length: 30–600 mm
System Layouts
- Single-strand or double-strand configurations
- Horizontal through-feed with rotating carrier rollers
Blast Wheels
- 2 or 4 roof-mounted TITAN blast wheels
- Power per wheel: 45 kW
- Max speed: up to 2,600 rpm
- Max abrasive velocity: up to 90 m/s
Feed System
- Variable feed speed: 5–18 m/min
- Carriers mounted on an endless chain with adjustable dwell time
Shot Management
- Precision separation and shot replenishment system
- Electronically controlled for consistent media condition
