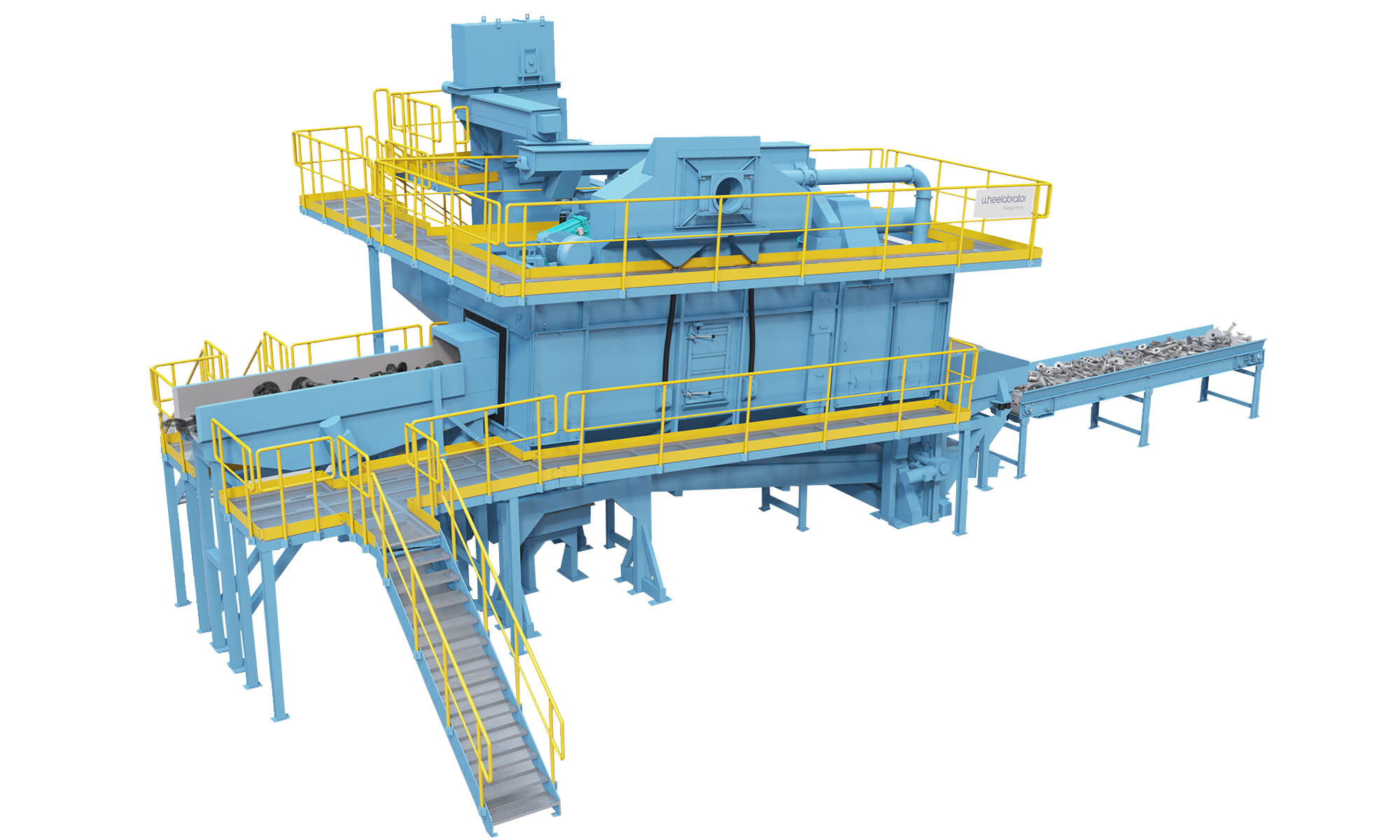

TUMBLAST® Rocker Drum Continuous (DT)
The TUMBLAST® Rocker Drum Continuous is a batch-type blast cleaning machine engineered for sand removal and descaling of tumble-proof castings and forgings. It features a polygon-shaped drum that rocks through 120° for full exposure of all workpiece surfaces and gentle tumbling throughout the blasting and unloading process.

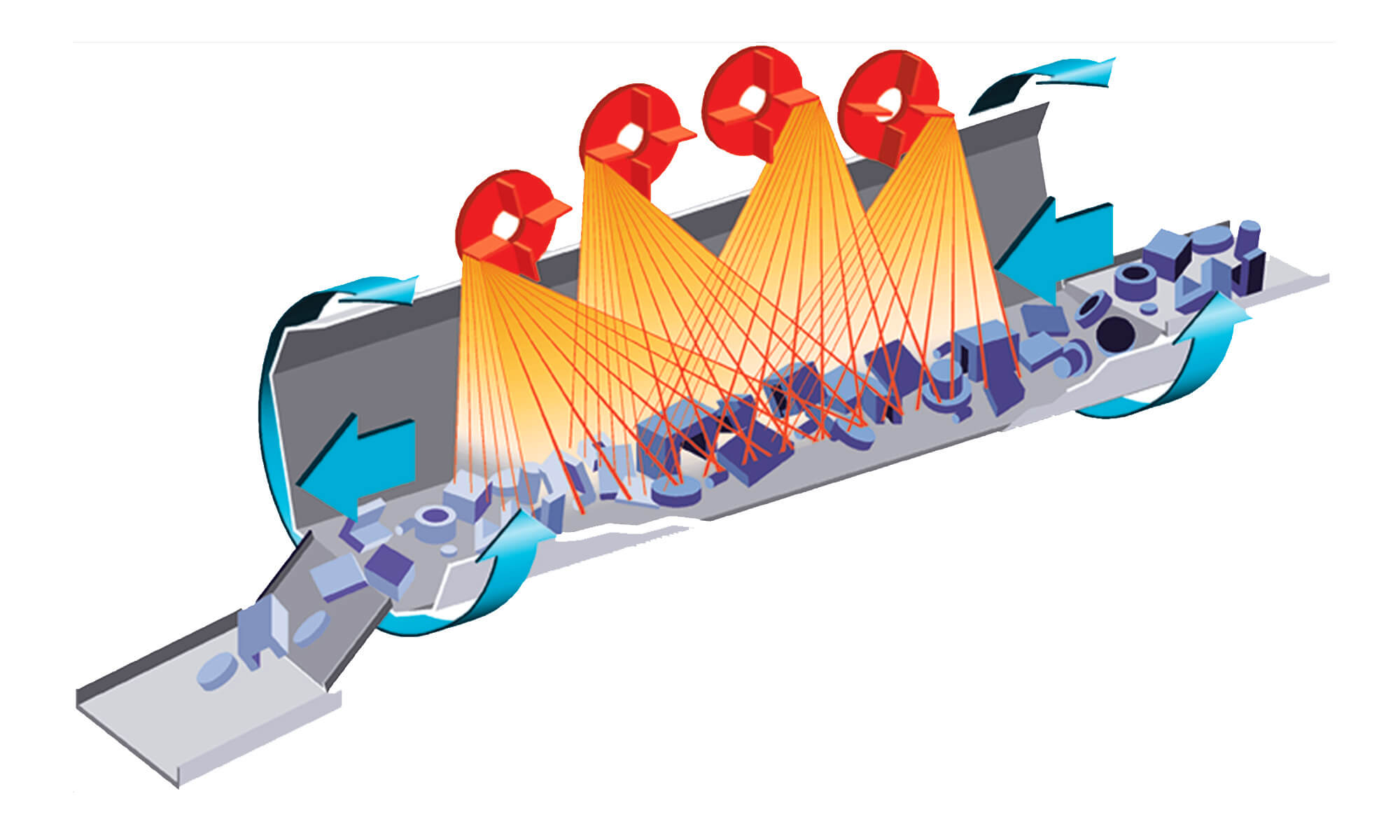

With blast wheels positioned along the longitudinal axis directly above the workload, the system delivers efficient, uniform results and maximised abrasive energy usage. Compact in design and simple to operate, it integrates easily into automated lines for virtually continuous production.
Applications
- Sand removal and of grey, ductile, steel, and malleable iron castings
- Descaling of forgings and heat-treated components
- Cleaning of mixed or single-part batches
Key benefits
Uniform Cleaning
Full exposure of surfaces via polygon-shaped drum and longitudinal blast wheel layout
Efficient Operation
Short blasting cycles, low part density, and minimal loading/unloading time
Compact & Integrated
Small footprint, suitable for integration into existing production flows
Durable & Low Maintenance
Wear-resistant drum, sealed system, and long maintenance intervals
Reduced Abrasive Use
Clean abrasive management with optional magnetic separation and efficient shot recovery
Safe & Accessible
Safety interlocks, sealed blast chamber, and easy access for maintenance

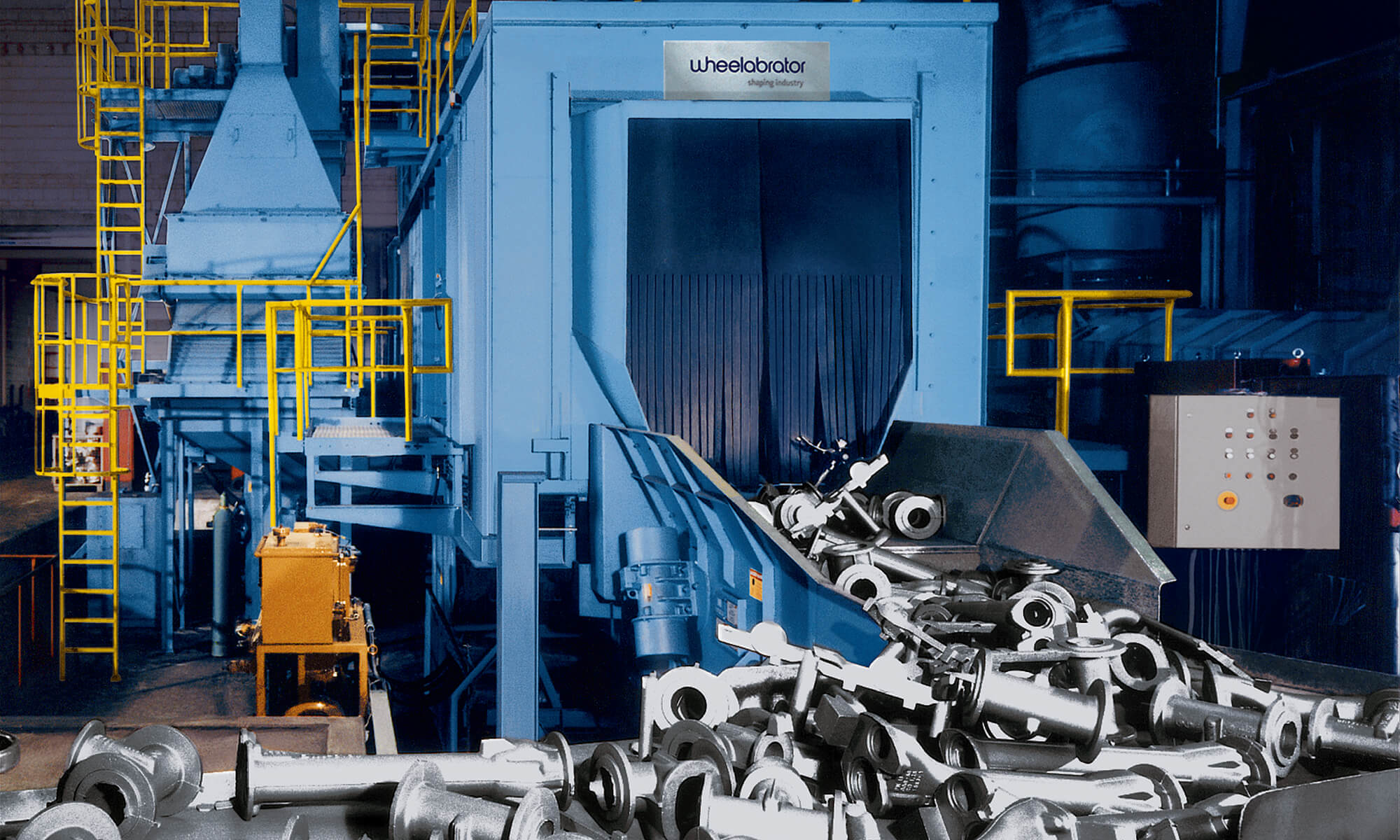

Industries
- Iron and steel foundries
- Automotive and commercial vehicle production
- Metal forging and heat treatment
- Industrial machinery manufacturing
Configuration / Options
Machine sizes
3 sizes - DTC 1, DTC 2, DTC 3
Load capacities
1,500 kg to 3,000 kg
Drum volumes
500 to 1,000 dm³
Blast wheel sizes
Ø380 mm or Ø500 mm
- Up to 4 blast wheels (22–37 kW per wheel)
- Magnetic or pneumatic abrasive separators
- Optional hoist or custom loading equipment
- Vibratory conveyors for part discharge
- Dust collection systems with filter units
