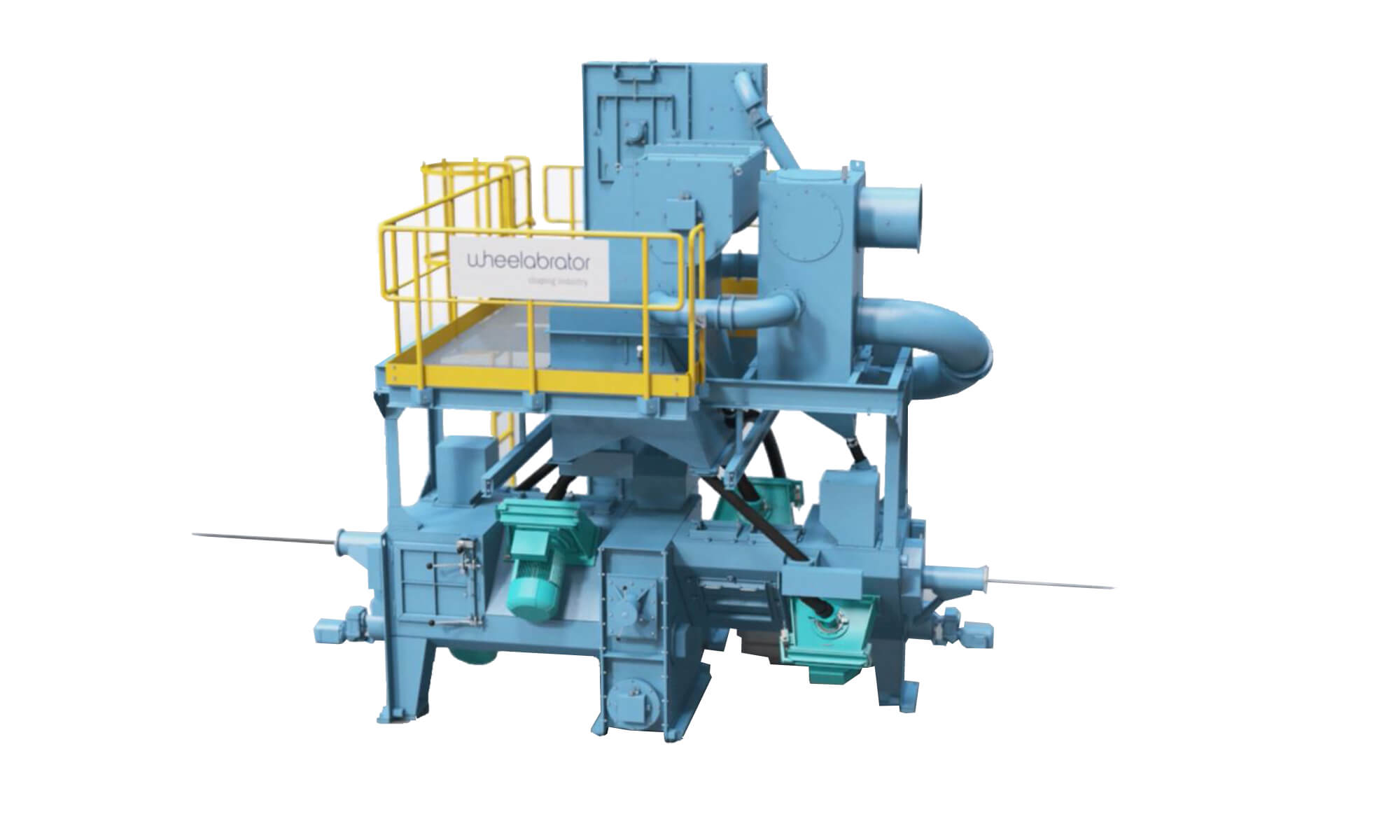

The Wire and Bar (FL)
The Wire and Bar (FL) series from Wheelabrator is a high-speed, precision-engineered shot blast solution for longitudinal descaling of wire, rod, and bar products. Designed for inline or standalone operation, the FL range supports drawing line speeds of up to 240 m/min, offering flexibility across varying production volumes and material cross-sections.
With blast wheel configurations ranging from 3 to 6 units and optimised guide systems, the FL series ensures uniform scale removal, long component life, and seamless integration into automated or manual lines. It is proven in hundreds of installations worldwide, where it operates around the clock with exceptional reliability.

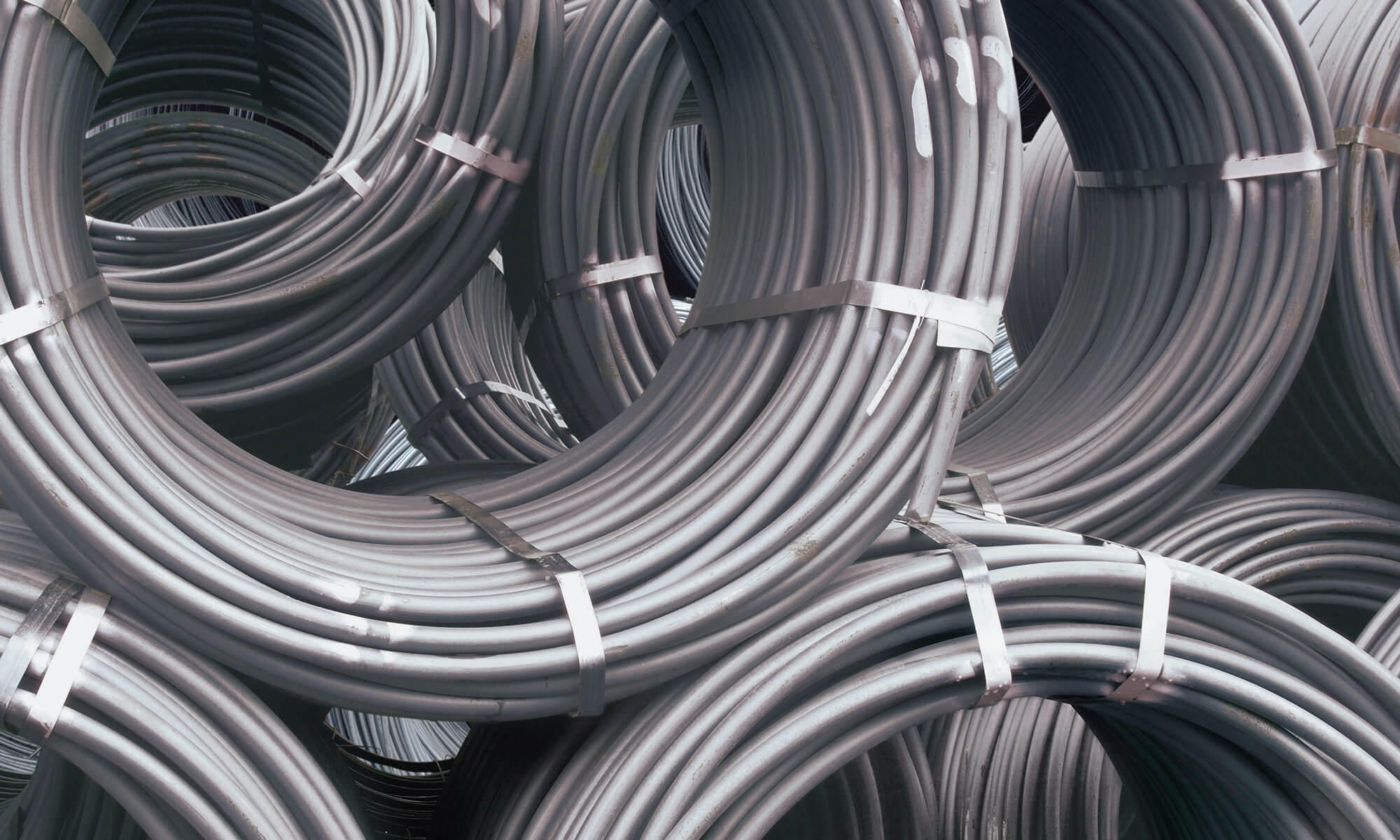

Applications
- Descaling of round, flat, square, and hexagonal wire or bar
- Surface preparation before drawing, straightening, galvanising, or coating
- Oxide and rust removal from hot-rolled or annealed product
- Front-end and rear-end cleaning of wire or rod during continuous processing
Key benefits
High-Speed Descaling
Supports continuous processing at speeds up to 240m/min
Precision Blasting
Adjustable blast stream guide plates ensure uniform coverage for different profiles
Flexible Integration
Designed for both standalone use and full integration into modern drawing or finishing lines
Energy Efficiency
Maximum utilisation of abrasive and drive energy through mechanical pre-acceleration
Durable Construction
Manganese steel cabinet, wear-resistant liners, and industrial-grade drive components
Easy Maintenance
Fast wear-part replacement, large service doors, and operator-friendly layout

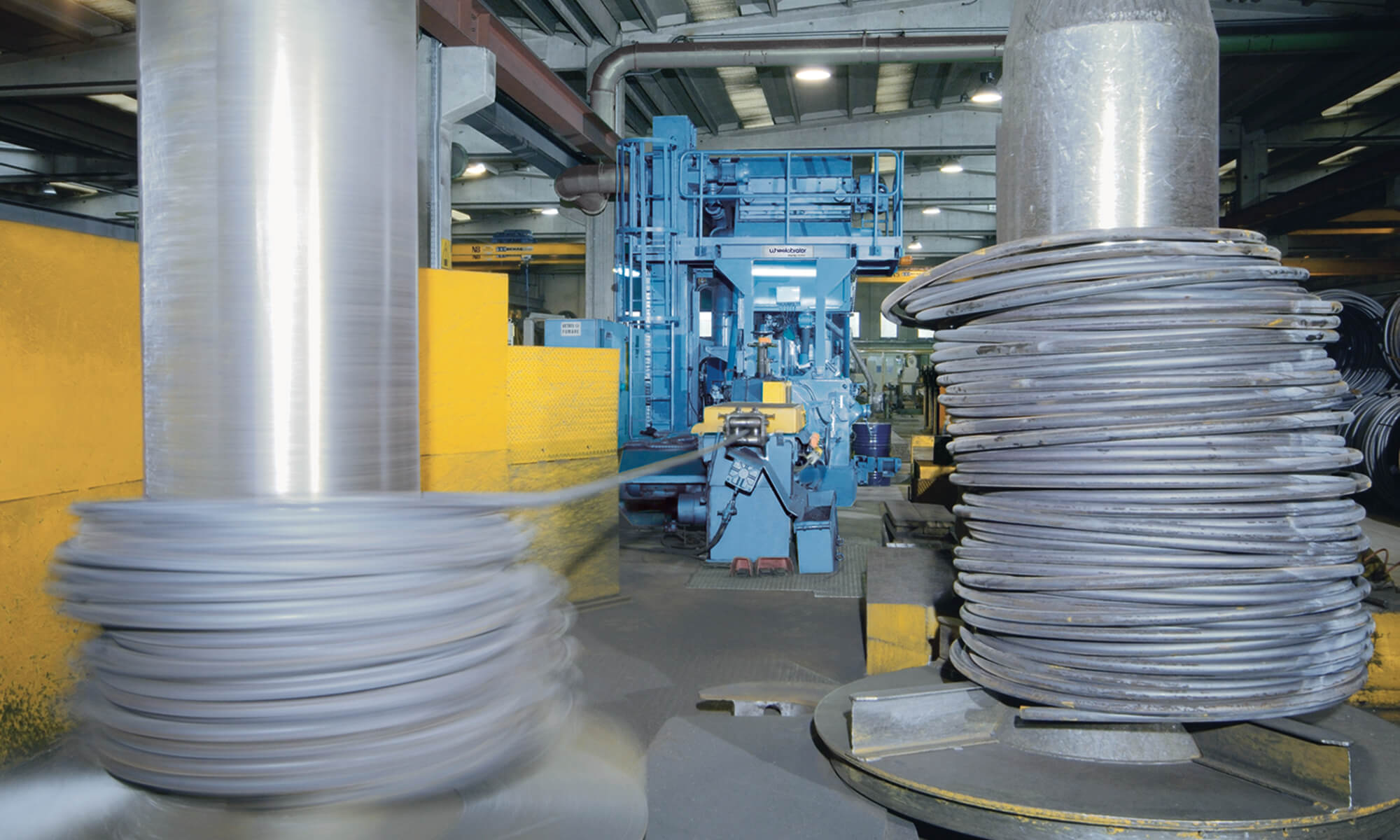

Industries
- Wire and cable production
- Bar and rod processing
- Fasteners and springs manufacturing
- Drawing mills and steel service centres
- Automotive and industrial component suppliers
Configuration / Options
Blast Wheels:
3, 4, or 6 blast wheels per machine
Power per wheel: 22 to 37 kW
Abrasive Throughput:
Up to 6 x 540 kg/min depending on machine size
Workpiece Envelope Diameter:
From 5 mm up to 130 mm
Processing Speed:
Up to 240 m/min depending on material and model
Transport Options
- Sealing bushes or precision rollers for smooth passage
- Vertically adjustable rollers for bar applications
- Adjustable blast guide plates and wire guides for small diameters
Machine Types
Suitable for wire, bar, or combined lines (multi-strand or single-strand configurations)
Abrasive Handling: Fully integrated recovery system with magnetic separation and airwash
Dust Control
ATEX-compliant filtration systems for dust-free operation and safe environmental control
Automation & Integration
- Available with reels, straighteners, feeders, and loading/unloading systems
- Remote abrasive control and PLC-based system configuration
