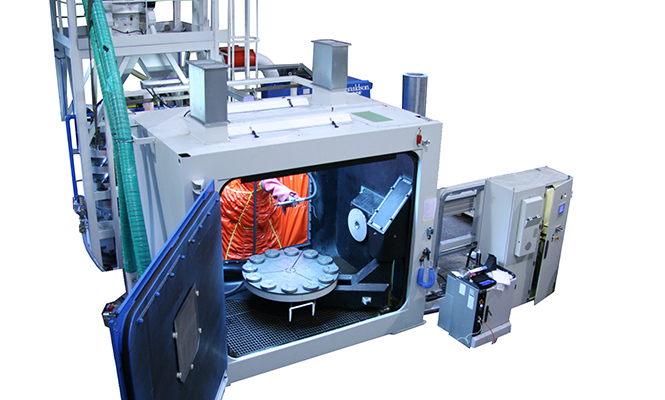

MPR 1500 LDG Peening System

MPR 1500 LDG Landing Gear Peening System

Technology:

Airblast

Application:

Shot Peening

Key Benefits

Capable of simultanuous shot peening of internal bores and external surfaces

Meets the highest aerospace industry specifications

Guaranteed process repeatability

The most efficient process control and supervision software

Features

  • Maximum component size 1500 mm Ø x 1000mm high, weight: 500 kg on the turntable and 1000 mm Ø x 2100 mm length weight : 150 kg on the spindle
  • Lateral NC lance for shot peening internal bores up to 2000mm
  • Robot controller linked with Siemens PLC for full process control
  • Double wall cabinet with pitless pneumatic recovery system
  • Stabilised base frame supporting an accurate precision turntable and robot to guarantee constant precision
  • Precision peening generators with air pressure, shot flow regulation
  • Supervision software including quality reports, maintenance assistant and process stability statistics

Applications

  • Landing gear shot peening
  • Simultanuous shot peening of internal bores and external surfaces of landing gear components

For ID + OD Shot Peening of Various Complex Landing Gear Components

A versatile robotic peening system, the Wheelabrator MPR 1500 LDG machine is specifically designed for the treatment of landing gear components. Meeting the highest aerospace industry specifications, the MPR 1500 LDG is suitable for ID+OD peening of various complex shaped components. The standard version includes the most efficient process control and supervision software, providing quality reports and process performance data.

Optional Features

  • Turntable equipped with 4, 6, 8 or 12 numerical satellites
  • Rotary lance unit for small bore peening
  • Sound insulation to 75 dBA
  • Quick media change system to handle different shot sizes and hardness in the same system
  • Off line programming
  • Air flow control
